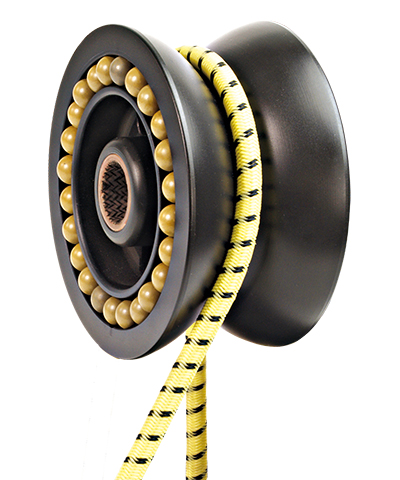

Antal Tulip Sheave 60 mm, Aluminium
A genuine Antal replacement tulip sheave for wide lead angles with minimal footprint. The 60 mm aluminium wheel uses self-captive side ball bearings in Torlon® and a composite axial/radial bearing to manage side loads—ideal for compact organisers and cross-deck leads where a revolving block won’t fit.
Why it’s a smart upgrade
- Handles acute lead angles while keeping decks tidy and low-profile
- Ultra-low friction from self-captive side balls (Torlon®)
- Hard-anodised, Teflon-coated aluminium for long service life
Key specifications
- Sheave Ø: 60 mm
- Max rope Ø: 14 mm
- Safe Working Load (SWL): 2,200 kg
- Thickness (T): 38 mm
- Hub Ø (D2): 15 mm
- Side bearing: Torlon® balls (self-captive)
- Axial/radial bearing: Composite fibre
- Sheave material: Aluminium
Typical applications
- Tulip organisers (2–6 sheave banks), cross-deck and pit leads
- Compact turning points where a standard revolving block adds too much bulk
Fit & compatibility notes
- Confirm your installation’s sheave Ø (60 mm), hub Ø (15 mm) and thickness (38 mm) before ordering
- Designed for rope up to 14 mm; not suitable for wire or rod
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Spezifikationen
| Width (mm) | 38 |
| Empfohlener max. Leinendurchmesser (mm) | 14 |
| Innendurchmesser (mm) | 15 |
| Material | Aluminium |
| Scheibe Ø (mm) | 60 |
| SWL (kg) | 2200 |
| Gewicht (g) | 160 |
