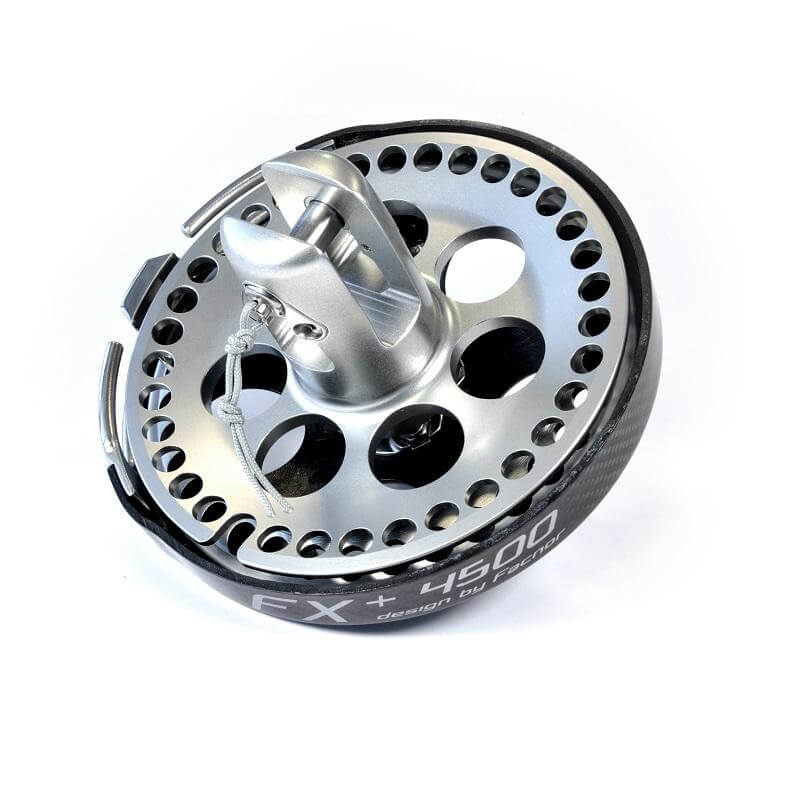

The FX+ range of continuous line furlers enable code zero's and gennakers to be hoisted and furled easily, quickly and safely. The FX+ range has been designed to be ultra-compact in order to maximise sail luff length. Removable furling lines, captive quick release pins, lightweight carbon fibre bodies and robust bearing mechanisms further simplify their use and minimise maintenance. The FX+7000 Furling drum replacement is supplied on its own without connection to deck or impact protection cover.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Especificaciones
| Ropes | |
|---|---|
| Cabo recomendado - Ø máx (mm) | 10 |
| Boat | |
|---|---|
| Eslora de barco recomendada - Máx (ft) | 70 |
| Eslora de barco recomendada - Mín (ft) | 55 |
| Load | |
|---|---|
| SWL (kg) | 7000 |
| NBL (kg) | 14000 |
| Dimensions | |
|---|---|
| Ø del tambor (mm) | 212 |
| Ø del pasador de horquilla (mm) | 14 |
| Ancho de horquilla (mm) | 26 |
| Weight | |
|---|---|
| Peso (g) | 1557 |
