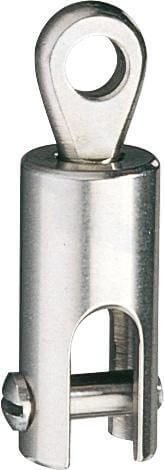

Specifications for Ronstan Barrel swivel - Eye/Fork
| Matériau | Acier inoxydable |
| Largeur de chape (mm) | 9,6 |
| Ø axe (mm) | 6,4 |
| Charge de travail (kg) | 850 |
| Charge de rupture (kg) | 1700 |
| A (mm) | 6,4 |
| B (mm) | 9,6 |
| C (mm) | 44,3 |
| D (mm) | 19 |
| E (mm) | 8,1 |
| Poids (g) | 60 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
Ronstan's ball bearing swivel range can be used in conjunction with blocks and rigging systems to provide articulation and rotation. Ball bearing swivels have lower friction and higher working loads than those without. Fork/eye swivel RF78B is suitable for use with RF76 jib furler.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Spécifications
| Matériau | Acier inoxydable |
| Largeur de chape (mm) | 9,6 |
| Ø axe (mm) | 6,4 |
| Charge de travail (kg) | 850 |
| Charge de rupture (kg) | 1700 |
| A (mm) | 6,4 |
| B (mm) | 9,6 |
| C (mm) | 44,3 |
| D (mm) | 19 |
| E (mm) | 8,1 |
| Poids (g) | 60 |
