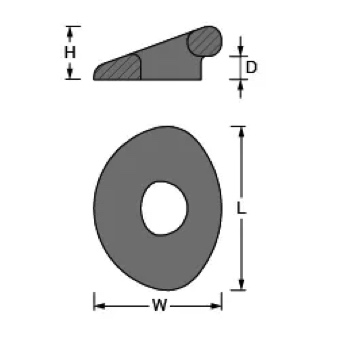

Specifications for Antal Soft Attach Pad Eye for 5mm Line - W/Studs
| Width (mm) | 34 |
| Fixing hole Ø (mm) | 6 |
| Number of fixing holes | 2 |
| Length (mm) | 43 |
| Recommended line - Max Ø (mm) | 5 |
| Style | Fixed |
| Material | Aluminium |
| Height (mm) | 16 |
| SWL (kg) | 600 |
| D (mm) | 7 |
| Weight (g) | 22 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.

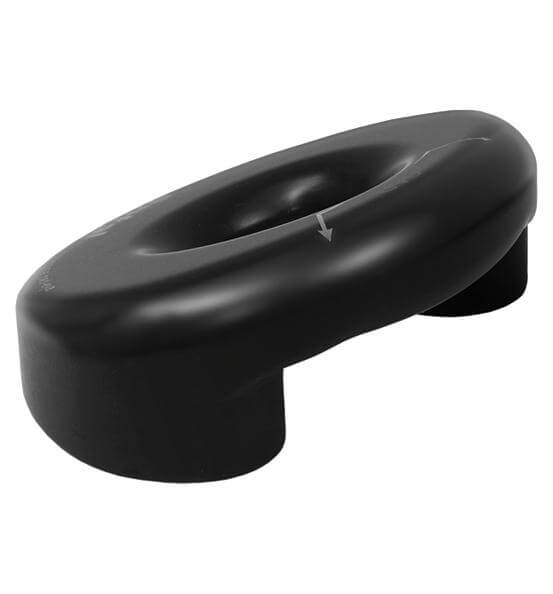

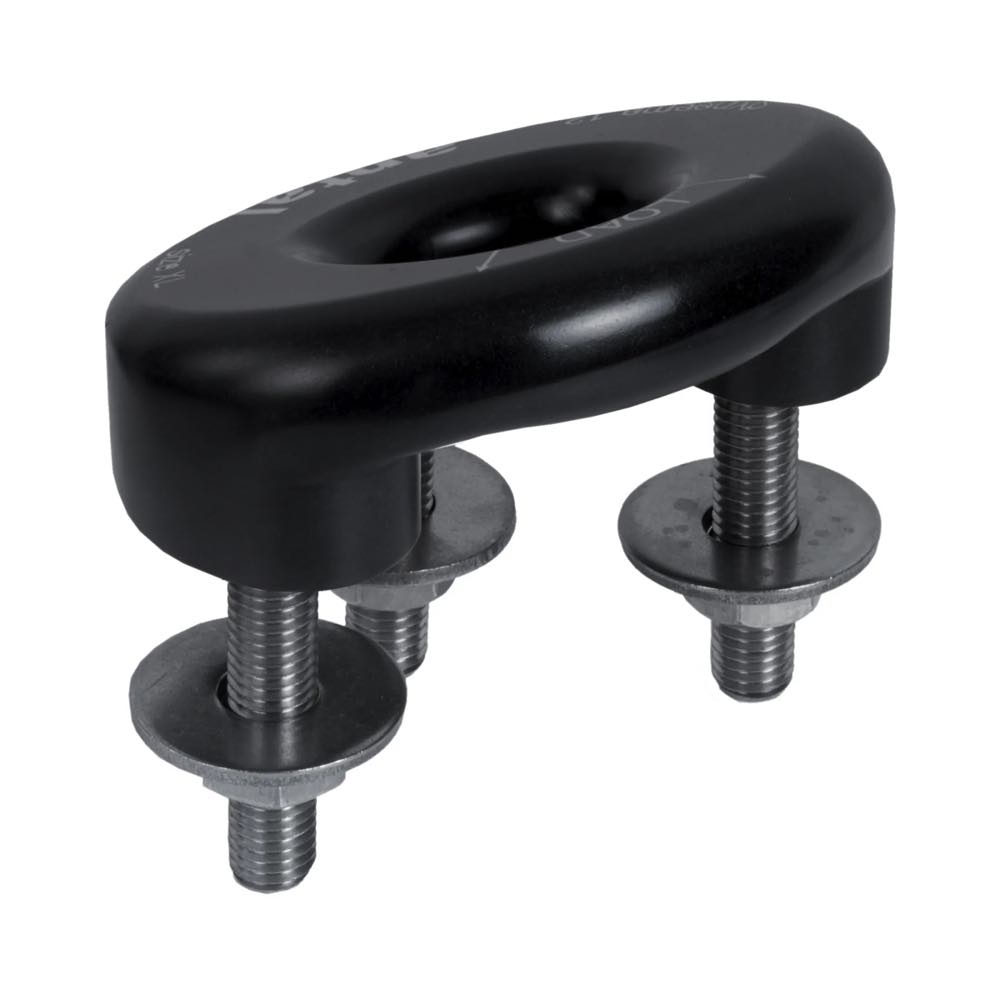

The Antal Dyneema Pad Eye D5 W/Studs is a suitable option for attaching Dyneema lines on your sailboat especially in situations where there's no access to the backside of the deck for standard screw installation. It offers a secure attachment point, helps distribute load, and maintains a low profile for safety on deck.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Width (mm) | 34 |
| Fixing hole Ø (mm) | 6 |
| Number of fixing holes | 2 |
| Length (mm) | 43 |
| Recommended line - Max Ø (mm) | 5 |
| Style | Fixed |
| Material | Aluminium |
| Height (mm) | 16 |
| SWL (kg) | 600 |
| D (mm) | 7 |
| Weight (g) | 22 |
