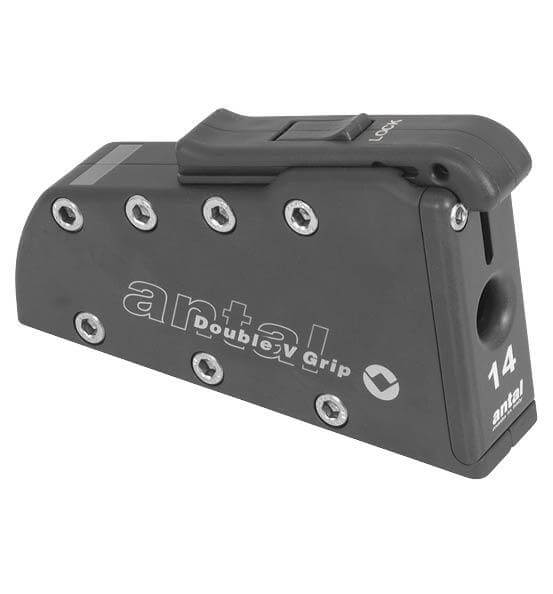

Antal DV Jammer For 14mm Lines Standard
The Antal DV Jammer For 14mm Lines Standard is a robust, deck-mounted jammer built for yachts with large sail plans and extremely high line loads. It uses Antal’s patented Double V-Grip system, which grips evenly on all sides of the rope, improving holding power and reducing localised cover damage compared with traditional jammers.
Key Features
- Deck-mounted design – Standard model for direct deck or coachroof installation, perfect for halyards and sheets led aft.
- Double V-Grip mechanism – Two V-shaped wedges apply an even four-sided grip that locks tighter as load increases, reducing line wear and maximising grip security.
- Safe Working Load (SWL) – Rated to 4,000 kg, giving outstanding performance for high-load rope systems.
- Line compatibility – Optimised for 14 mm lines, making it suitable for large halyards, sheets, and reefing systems.
- Heavy-duty build – Marine-grade alloys and stainless steel deliver maximum durability and resistance to corrosion.
- Smooth handling – Ratchet-assisted slider ensures easy engagement and safe, controlled release with a winch.
Applications
The 14 mm DV Jammer is designed for halyards, reefing lines, and other large control lines on yachts in the 70–90 ft range. Its deck-mounted configuration provides straightforward installation and reliable performance for the largest line systems.
Alternatives
- DV Jammer Side-Mount version – for mast or bulkhead mounting.
- DV Jammer Remote-Control version – operated via a control line in place of the manual slider.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Width (mm) | 43 |
| Fixing hole Ø (mm) | 10 |
| Number of fixing holes | 4 |
| Length (mm) | 183 |
| Recommended line - Max Ø (mm) | 14 |
| Recommended line - Min Ø (mm) | 14 |
| Height (mm) | 113 |
| SWL (kg) | 4000 |
| Weight (g) | 1300 |
