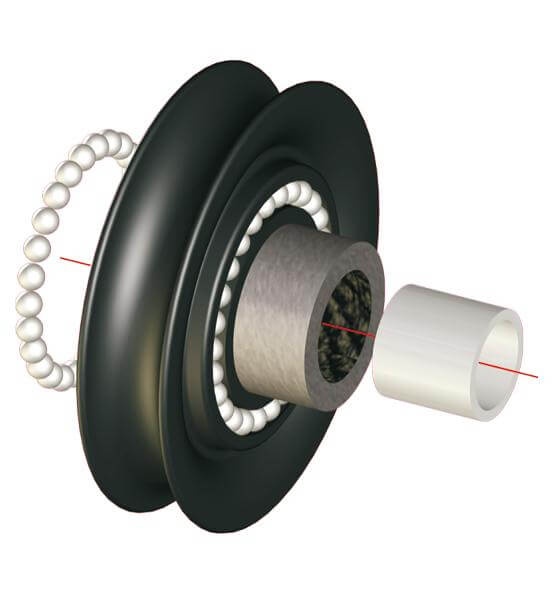

Antal block sizes 150, 180, 220 and 250 mm use thickly anodized aluminium sheaves. The main bearing is made of high-strength composite fibre impregnated with self-lubricating substances. A double lateral Delrin ball bearing makes the sheaves slide perfectly smoothly.
Sheaves are supplied with a stainless steel central hub.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Width (mm) | 29 |
| Recommended line - Max Ø (mm) | 20 |
| Inside Ø (mm) | 34 |
| Material | Aluminium |
| Sheave Ø (mm) | 150 |
| SWL (kg) | 6500 |
| Weight (g) | 900 |
