Specifications for Wichard Thimble Shackle - Ø10mm captive pin
| Recommended line - Max Ø (mm) | 16 |
| Material | Stainless Steel |
| Material Grade | AISI 316L |
| Pin Ø (mm) | 10 |
| SWL (kg) | 1520 |
| NBL (kg) | 5000 |
| A (mm) | 51 |
| B (mm) | 20 |
| C (mm) | 10 |
| D (mm) | 20 |
| E (mm) | 9 |
| F (mm) | 95 |
| G (mm) | 54 |
| Weight (g) | 146 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.

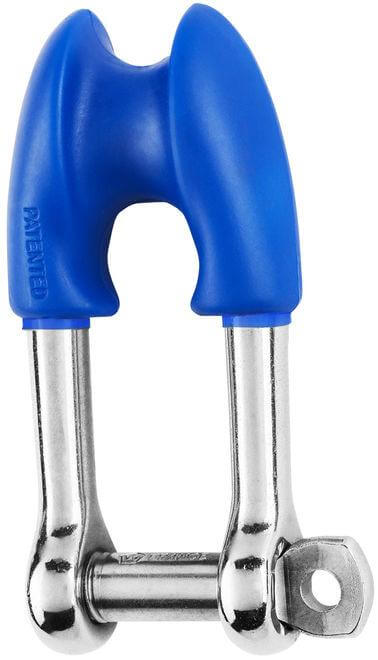

Wichard's thimble shackle with captive pin combines a shackle with a thimble. The patented thimble cover allows lines to be spliced directly onto shackle, without the need for a separate thimble. The captive pin is a typical shackle pin.
This range of shackles is producted with 316L grade stainless steel, a metal favoured for it's high corrosion resistance in marine environments.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Recommended line - Max Ø (mm) | 16 |
| Material | Stainless Steel |
| Material Grade | AISI 316L |
| Pin Ø (mm) | 10 |
| SWL (kg) | 1520 |
| NBL (kg) | 5000 |
| A (mm) | 51 |
| B (mm) | 20 |
| C (mm) | 10 |
| D (mm) | 20 |
| E (mm) | 9 |
| F (mm) | 95 |
| G (mm) | 54 |
| Weight (g) | 146 |
