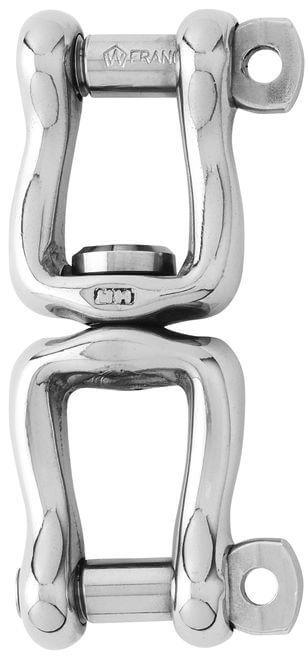

Specifications for Wichard Swivel Double Fork with self-locking pin - Length: 120 mm
| Longueur totale (mm) | 120 |
| Matériau | Acier inoxydable |
| Material Grade | AISI 630 (17-4 / HR) |
| Ø axe (mm) | 18 |
| Charge de travail (kg) | 2000 |
| Charge de rupture (kg) | 5000 |
| A (mm) | 30 |
| B (mm) | 27 |
| C (mm) | 18 |
| D (mm) | 18 |
| Poids (g) | 322 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
HR forged swivel (17.4 Ph) with two openings
With self-locking pin
Outstanding working and breaking loads
Applications
Link two pieces which have different rotation
Do not use for mooring applications
