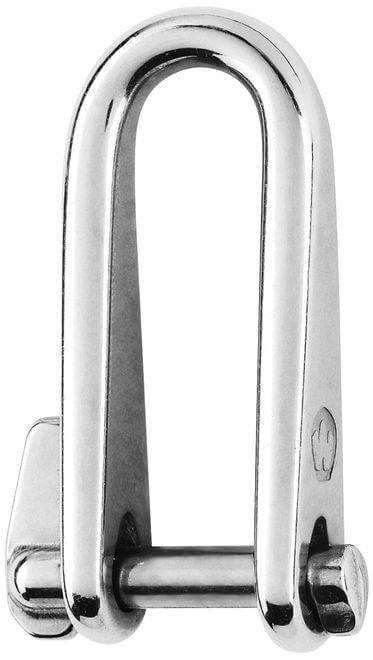

Specifications for Wichard Key pin shackle - Dia 5 mm
| Material | Stainless Steel |
| Material Grade | AISI 316L |
| Pin Ø (mm) | 5 |
| SWL (kg) | 400 |
| NBL (kg) | 1000 |
| A (mm) | 37 |
| B (mm) | 13 |
| C (mm) | 5 |
| D (mm) | 11 |
| E (mm) | 4 |
| F (mm) | 49 |
| G (mm) | 31 |
| Weight (g) | 31 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
Key pin shackle forged in grade 316L stainless steel
Opening and closing is done simply by rotating the pin half a turn
No risk to lose the pin as it remains attached
Outstanding working and breaking loads
Applications
Perfect product for halyards or applications requiring to open /close the shackle often
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Material | Stainless Steel |
| Material Grade | AISI 316L |
| Pin Ø (mm) | 5 |
| SWL (kg) | 400 |
| NBL (kg) | 1000 |
| A (mm) | 37 |
| B (mm) | 13 |
| C (mm) | 5 |
| D (mm) | 11 |
| E (mm) | 4 |
| F (mm) | 49 |
| G (mm) | 31 |
| Weight (g) | 31 |
