Wichard HR long D shackle - Dia 10 mm

https://www.upffront.com/web/image/product.template/30049/image_1920?unique=31ff2aa

83,91 83.91 USD 83,91

71,51 €

0% Off

Available on request

Tage
:
Std
:
Minuten
:
Sekunden
  • Marke
  • Material
  • Material Grade
  • Pin Ø (mm)
  • SWL (kg)
  • NBL (kg)
  • A (mm)
  • B (mm)
  • Gewicht (g)

Diese Kombination existiert nicht.

Product Image

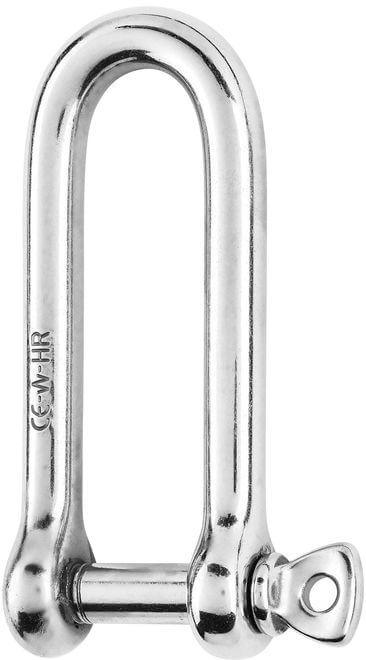

Wichard HR long D shackle - Dia 10 mm

83,91 83,91
0% Off
SKU:
N/A
Brand: Wichard
Shipping Info

30 Tage Geld-zurück-Garantie

 14-tägiges Rückgaberecht

 Expressversand verfügbar

Share :

Forged long shackle in HR stainless steel grade (17,4 PH)

Outstanding working and breaking load

A HR shackle can be up to 60% more resistant than a shackle in 316L stainless stee

WLL: only for industrial applications (lifting i.e…)

CE marking and batch number


Applications

Applications requesting high loads

Standard applications of shackle

Attachment applications: blocks, head …

Do not use for mooring applications

Spezifikationen

Material Edelstahl
Material Grade AISI 630 (17-4 / HR)
Pin Ø (mm) 10
SWL (kg) 2640
NBL (kg) 6000

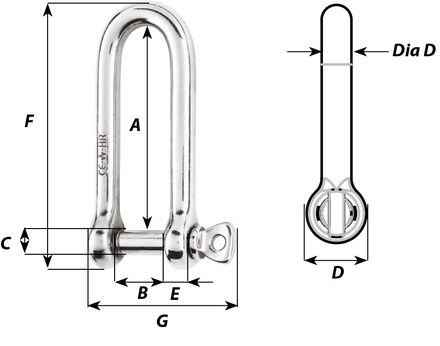

A (mm) 78
B (mm) 20
Gewicht (g) 164
