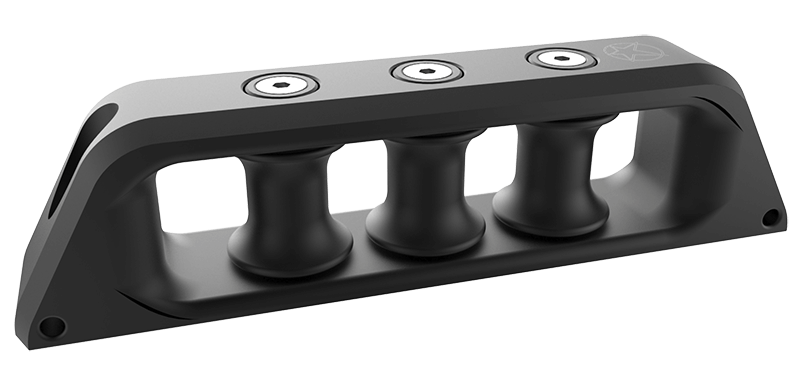

Specifications for UBI Maior Organiser 3 Sheaves 22mm, High Load, MWL 3000Kg
| Total width (mm) | 39 |
| Recommended line - Max Ø (mm) | 14 |
| Total height (mm) | 49 |
| Total length (mm) | 204 |
| Sheave Ø (mm) | 22 |
| Sideplate material | Aluminum |
| Sheave material | Aluminium |
| SWL (kg) | 3000 |
| NBL (kg) | 6000 |
| A (mm) | 204 |
| B (mm) | 39 |
| C (mm) | 49 |
| Weight (g) | 615 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
Featuring a 22mm sheave and 3T working load, these high performance organisers offer a great strength/weight option in a compact size.
Screws not supplied.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Total width (mm) | 39 |
| Recommended line - Max Ø (mm) | 14 |
| Total height (mm) | 49 |
| Total length (mm) | 204 |
| Sheave Ø (mm) | 22 |
| Sideplate material | Aluminum |
| Sheave material | Aluminium |
| SWL (kg) | 3000 |
| NBL (kg) | 6000 |
| A (mm) | 204 |
| B (mm) | 39 |
| C (mm) | 49 |
| Weight (g) | 615 |
