Specifications for Tylaska T16 Martin Breaker - Standard Bail Snap Shackle
| Material | Stainless Steel |
| Material Grade | 17-4PH SS |
| SWL (kg) | 3630 |
| NBL (kg) | 7260 |
| A (mm) | 22.9 |
| B (mm) | 20.1 |
| C (mm) | 120 |
| Weight (g) | 258 |

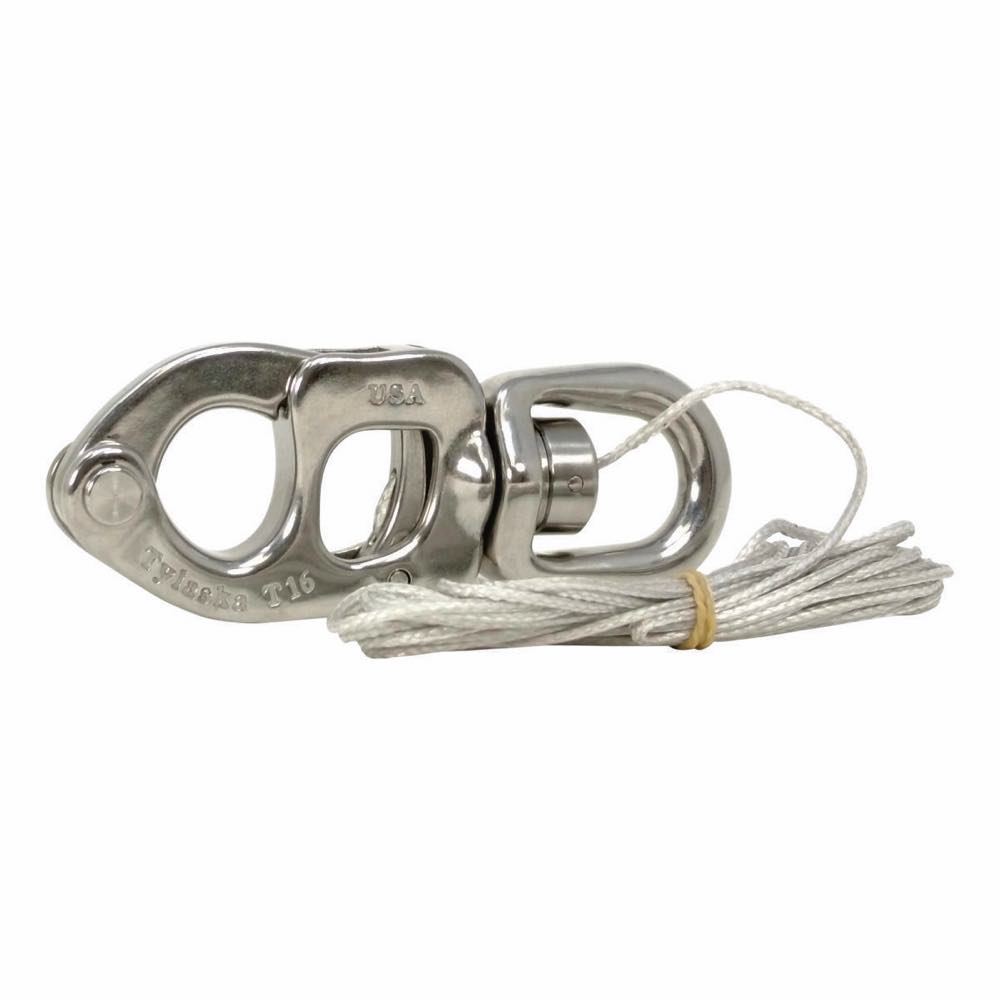

Tylaska T16 Martin Breaker – Standard Bail Snap Shackle
The Tylaska T16 Martin Breaker is the largest and most powerful model in the Martin Breaker range, designed for yachts in the 40–50 ft class and beyond. Engineered from heat-treated 17-4 PH stainless steel and precision-machined to aerospace tolerances, the T16 provides unmatched strength, safety, and reliability for demanding high-load applications.
Fitted with a Dyneema® remote-release cord, the T16 allows a fully loaded tack shackle to be released instantly and safely from the cockpit. This system eliminates the need for a bow crew to manually spike the shackle, making it especially valuable during spinnaker drops in heavy weather or offshore conditions. For professional race crews and short-handed sailors alike, it delivers confidence and control during high-stakes manoeuvres.
With an outstanding breaking load of 16,000 lb (7,260 kg), the T16 is built to handle the rigging loads of larger performance yachts. The standard swivelling bail provides secure and versatile attachment while reducing line twist, ensuring smooth handling of sheets and tack lines under extreme loads.
Key Features
- Breaking load: 16,000 lb (7,260 kg)
- Ideal for boats: ~40–50 ft and larger performance yachts
- Material: Aerospace-grade 17-4 PH stainless steel, heat-treated for maximum strength
- Release system: Pre-installed Dyneema® cord for under-load remote trigger release
- Bail type: Standard swivelling bail for flexible attachment and twist reduction
- Safety & performance: Designed for high-load applications, delivering safe, fast, and controlled spinnaker takedowns
- Proof-tested: Every unit individually tested to its working load for guaranteed reliability
Typical Applications
- Tack line release for large asymmetric spinnakers on offshore race yachts
- Remote-release gennaker or Code sail sheets in heavy-load systems
- Offshore, ocean-racing, and high-performance crews where safety and reliability are paramount
The Tylaska T16 Martin Breaker represents the pinnacle of snap shackle technology, bringing professional-grade safety and performance to larger yachts operating in the most demanding conditions.
Specifications
| Material | Stainless Steel |
| Material Grade | 17-4PH SS |
| SWL (kg) | 3630 |
| NBL (kg) | 7260 |
| A (mm) | 22.9 |
| B (mm) | 20.1 |
| C (mm) | 120 |
| Weight (g) | 258 |
