Spinlock XAS Clutch - Drilling Guide.pdf
|
|
|
XAS Powerclutch Maintenance and Servicing Guide
|
|
|
|
SL_Spinlock Powerclutch XAS Installation and Use EN FR DE_001.pdf
Spinlock Powerclutch XAS Installation and User Manual-French/German/English
|
|
|
|
SL_Spinlock Powerclutch XAS Accessory Intructions EN FR_001.pdf
Spinlock Powerclutch XAS Accessory Intructions Manual- French/English
|

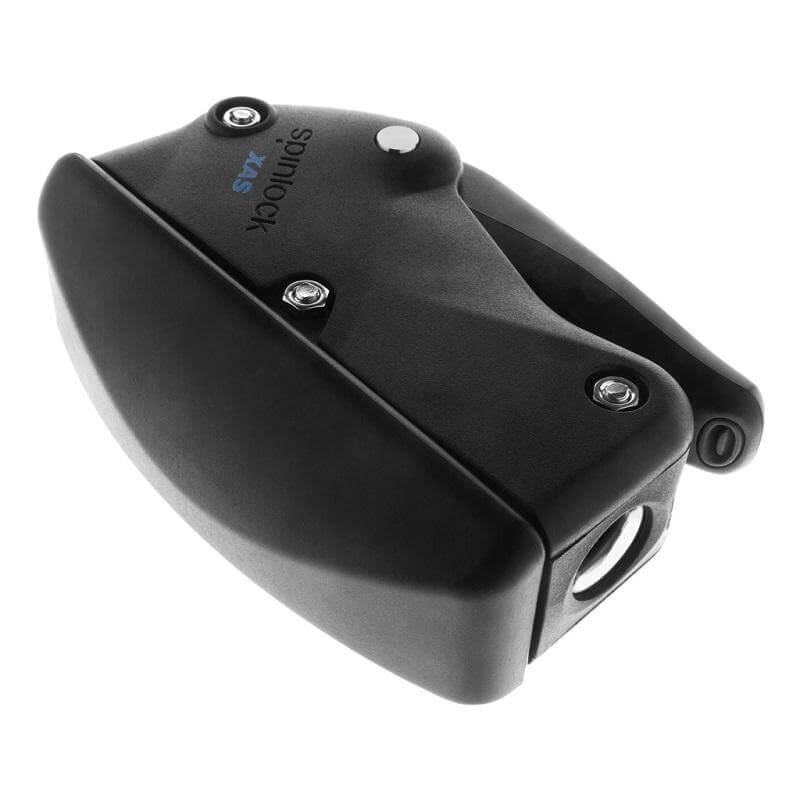

The XAS0408-HP is a port side-mounted version of Spinlock's XAS Clutch - a multi-role clutch with excellent performance across a wide rope range. The XAS0408 gives optimised clutching and holding power on 4-8mm lines and is perfect for racing yachts up to to 27’ and cruising yachts up to 35’. The clutch is line-friendly with easy-access handle for effortless release. It has replaceable parts, is easy to upgrade and maintain and is supplied with handle labels. Installation requires 2 x M6 CSK and 3 x M5 85mm long (not supplied).
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Total width (mm) | 39 |
| Recommended line - Max Ø (mm) | 8 |
| Recommended line - Min Ø (mm) | 4 |
| Total height (mm) | 94 |
| Total length (mm) | 134 |
| Colour* | Black |
| Mounting fasteners | 2 x M6 CSK Head (not supplied) |
| Line entry height (mm) | 18 |
| SWL (kg) | 450 |
| Warranty (yrs) | 5 |
| Weight (g) | 570 |
