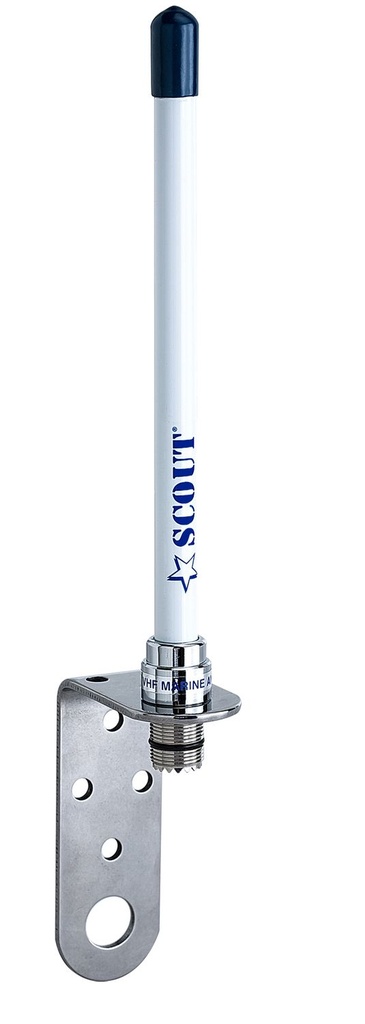

Scout KM-10 VHF Fibreglass Antenna Set (Inc. Cable) – Complete Compact Marine VHF Kit

The Scout KM-10 VHF Fibreglass Antenna Set (Inc. Cable) is a fully integrated marine VHF antenna solution, perfect for small boats, RIBs, sailing yachts, and motor cruisers where space, simplicity, and performance are key. This complete kit includes the ultra-compact 18cm KM-10 antenna, 20 metres of RG58U coaxial cable, a PL-259 connector, and a stainless steel mounting bracket—everything you need for a quick and professional installation.

Discreet but Durable – KM-10 VHF Antenna

At just 18cm in length, the KM-10 is one of the smallest marine VHF antennas on the market—ideal for applications where low profile and aesthetics matter. Constructed from high-gloss fibreglass with an anti-UV finish, it’s built to withstand harsh marine conditions without degrading or discolouring over time. Despite its size, the antenna offers 3dB gain, optimised for clear, consistent communication in coastal and inshore waters.

Plug-and-Play Installation

The set includes a 20m length of marine-grade RG58U coaxial cable, pre-terminated with a PL-259 connector for quick and reliable hook-up to your VHF radio. This reduces setup time and eliminates the need for specialist tools or cable terminations onboard.

Flexible Mounting with Included Bracket

A robust stainless steel mounting bracket is included in the set, designed to work seamlessly with the antenna’s standard 1" x 14 threaded ferrule. This bracket allows for versatile mounting options on consoles, rails, or hardtops, giving you flexibility in antenna placement without compromising performance.

What’s Included

• KM-10 Antenna (18cm length, 3dB gain, fibreglass with UV protection)
• 20m RG58U Coaxial Cable (pre-terminated with PL-259 connector)
• PL-259 Connector (installed)
• Stainless Steel Mounting Bracket (1" x 14 threaded fitting)

Technical Specifications

• Frequency Range: 156–162 MHz (Marine VHF Band)
• Gain: 3dB
• Impedance: 50 Ohm
• Antenna Length: 18cm
• Weight: 160g
• Mounting: 1” x 14 standard thread

Ideal For

• RIBs, tenders, and small yachts
• Discreet or low-profile antenna installations
• Inshore and coastal cruising
• Primary or secondary VHF setups

The Scout KM-10 VHF Fibreglass Antenna Set (Inc. Cable) is the perfect combination of compact form, rugged build quality, and turnkey installation—a trusted choice for boat owners seeking dependable VHF communication without bulk or complexity.
