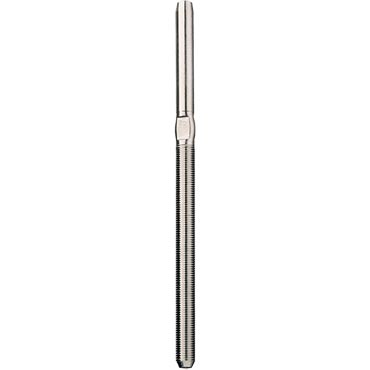

Specifications for Ronstan Type 1 Swage Terminal, 6mm Wire, 1/2” Thread
| Suits Ronstan turnbuckle | RF1480-08 |
| Thread size | 1/2" UNF |
| Cable Ø (mm) | 6 |
| A (mm) | 10.5 |
| B (mm) | 70.4 |
| C (mm) | 245 |
| D (mm) | 143 |
| E (mm) | 12 |
| Weight (g) | 194 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
Features:
B.L.=5410kg (11900lb)
Applications:
For wire end termination to suit metric wire
Materials:
Grade 316 stainless steel
Product information:
Threaded swage terminals up to and including 7/8" UNF have rolled right hand threads to maximise strength.
