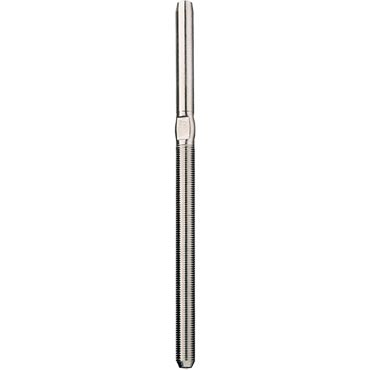

Specifications for Ronstan Turnbuckle Swage Terminal - 6mm, 3/8" UNF
| Suits Ronstan turnbuckle | RF1480-06, RF1481-06 |
| Thread size | 3/8" UNF |
| Kabel Ø (mm) | 6 |
| A (mm) | 10.5 |
| B (mm) | 70.4 |
| C (mm) | 195 |
| D (mm) | 105 |
| E (mm) | 12.5 |
| Gewicht (g) | 115 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
Features:
B.L.=3580kg (7870lb)
Applications:
For wire end termination to suit metric wire
Materials:
Grade 316 stainless steel
Product information:
Threaded swage terminals up to and including 7/8" UNF have rolled right hand threads to maximise strength.
