Specifications for Ronstan Triggersnap shackle, large bail, 123mm
| Style | Swivel Bail (Large) |
| Material | Stainless Steel |
| Material Grade | 15-5PH SS |
| SWL (kg) | 2400 |
| NBL (kg) | 4800 |
| A (mm) | 19 |
| B (mm) | 25 |
| C (mm) | 123 |
| Weight (g) | 194 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.

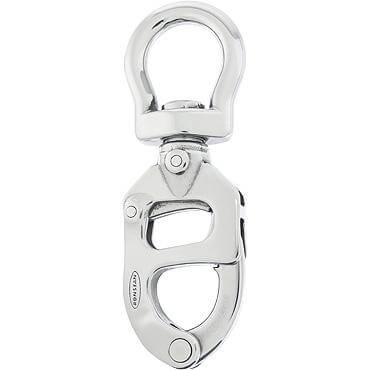

Ronstan Triggersnap shackle, large bail, 123mm
Features:
- High strength-to-weight ratio
- Heat treated, investment cast 15.5PH stainless steel for high strength and corrsion resistance
- Use the aluminium spike to release easily while under load
All Triggersnap™ Shackles are 100% proof load tested.
Batch stamped for increased tracability.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Style | Swivel Bail (Large) |
| Material | Stainless Steel |
| Material Grade | 15-5PH SS |
| SWL (kg) | 2400 |
| NBL (kg) | 4800 |
| A (mm) | 19 |
| B (mm) | 25 |
| C (mm) | 123 |
| Weight (g) | 194 |
