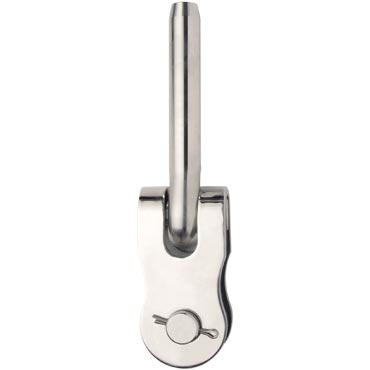

Specifications for Ronstan Swage Toggle, 5mm Wire, 6.4mm (1/4”) Pin
| Cable Ø (mm) | 5* |
| A (mm) | 7.8 |
| B (mm) | 9.1 |
| C (mm) | 38.4 |
| D (mm) | 94.8 |
| E (mm) | 16.8 |
| F (mm) | 6.2 |
| Weight (g) | 72 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
Materials:
Grade 316 stainless steel
Product information:
For wire end termination allowing movement in two planes to minimise the fatiguing effects of cyclic action
* Toggle swage terminal BL is below the typical BL of grade 1570, 1x19 stainless steel wire.
