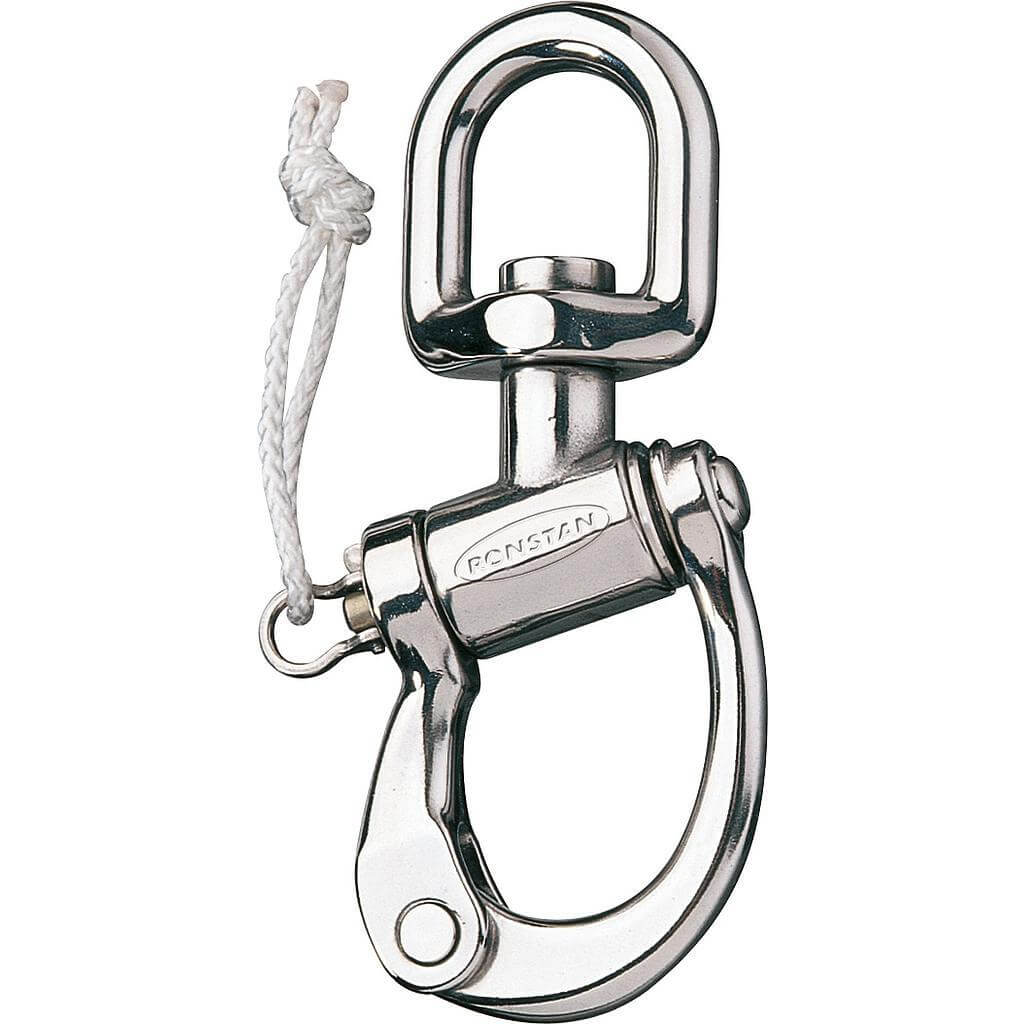

Ronstan Snap Shackle Trunnion Small Bale 137mm
- Trunnion swivel head allows both 360° rotation and sided to side articulation.
- Small and large bail versions.
- Grade 15-5PH investment cast stainless steel body and hasp.
- Stainless steel plunger pin and spring.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Spécifications
| Style | Swivel Bail (Small) |
| Matériau | Acier inoxydable |
| Material Grade | 15-5PH SS |
| Charge de travail (kg) | 3000 |
| Charge de rupture (kg) | 6000 |
| A (mm) | 32 |
| B (mm) | 25 |
| C (mm) | 137 |
| Poids (g) | 369 |
