Specifications for MORFRAC powerfurl.[three] - Ti D-Shackle 8mm pin - 3t SWL furler
| Pin Ø (mm) | 8 |
| SWL (kg) | 3000 |
| A (mm) | 8 |
| B (mm) | 42.2 |
| C (mm) | 47 |
| D (mm) | 26 |
| E (mm) | 9 |
| F (mm) | 16.2 |
| G (mm) | 16 |
| H (mm) | 8 |
| Weight (g) | 62 |

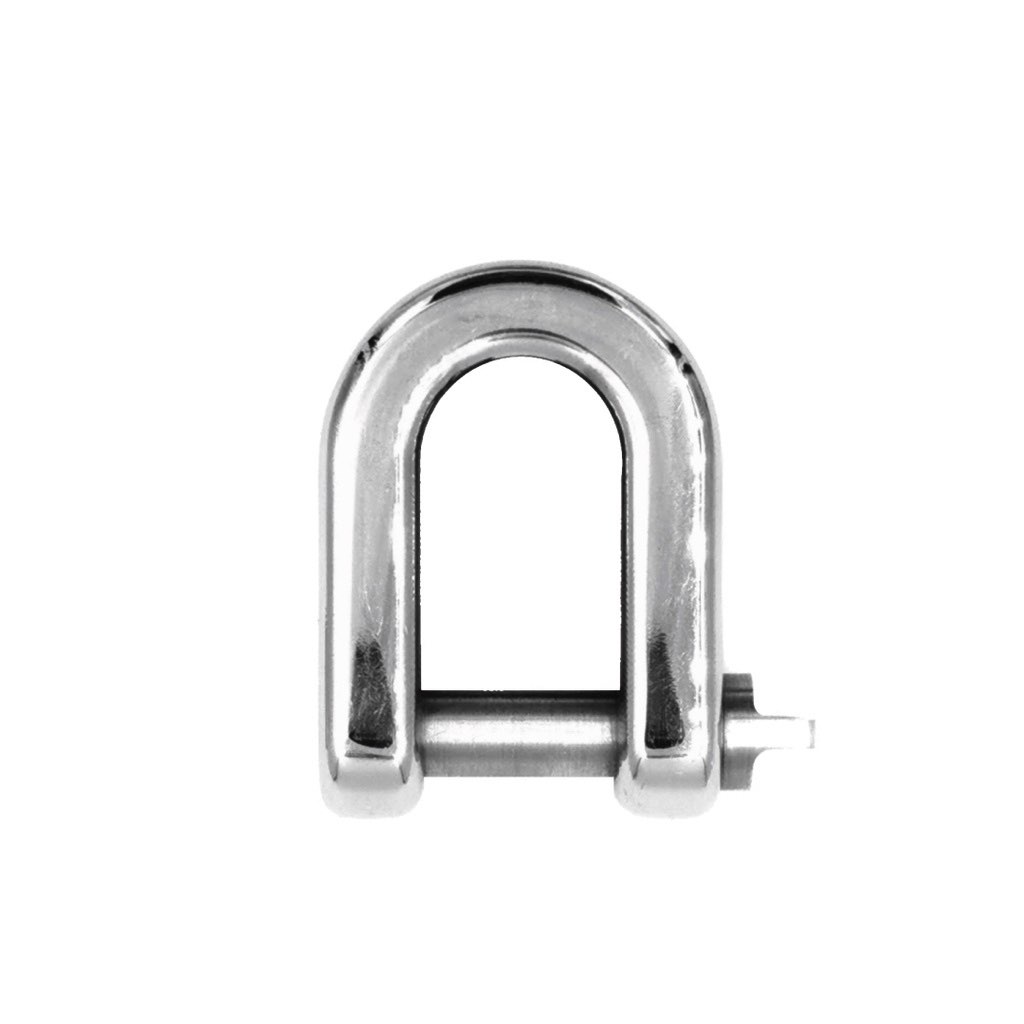

Morfrac powerfurl.[three] – Ti D-Shackle 8mm Pin (3t SWL)
The Morfrac Ti D-Shackle for powerfurl.[three] is a premium connection fitting engineered to deliver full load-rated performance for the 3t SWL Powerfurl furler. Featuring an 8mm pin and precision-machined from titanium, it offers exceptional strength, minimal weight, and total resistance to corrosion in demanding marine environments.
Designed for yachts in the 35–45 ft range, this D-shackle is certified to match the SWL of the furler itself—ensuring consistent structural integrity across the system. Its low-profile design minimises windage and snag risk, making it ideal for both racing and performance cruising applications.
Key Features:
- Certified to 3t Safe Working Load
- 8mm pin diameter – tailored for powerfurl.[three] drum and swivel interfaces
- CNC-machined from aerospace-grade titanium
- Lightweight, corrosion-proof, and built for offshore durability
- Flush-profile D-shape for streamlined rigging
- Sold individually
By eliminating under-rated terminal fittings, this titanium shackle helps maintain Morfrac’s full-system performance standard—ensuring the connection hardware is as strong as the furler itself.
Specifications
| Pin Ø (mm) | 8 |
| SWL (kg) | 3000 |
| A (mm) | 8 |
| B (mm) | 42.2 |
| C (mm) | 47 |
| D (mm) | 26 |
| E (mm) | 9 |
| F (mm) | 16.2 |
| G (mm) | 16 |
| H (mm) | 8 |
| Weight (g) | 62 |
