Specifications for Morfrac powerfurl.[six] - Ti D-Shackle 10mm pin - 6t SWL furler
| SWL (kg) | 6000 |
| A (mm) | 10 |
| B (mm) | 55.2 |
| C (mm) | 55.5 |
| D (mm) | 27.5 |
| E (mm) | 12.5 |
| F (mm) | 20.2 |
| G (mm) | 18 |
| H (mm) | 10 |
| Weight (g) | 121 |

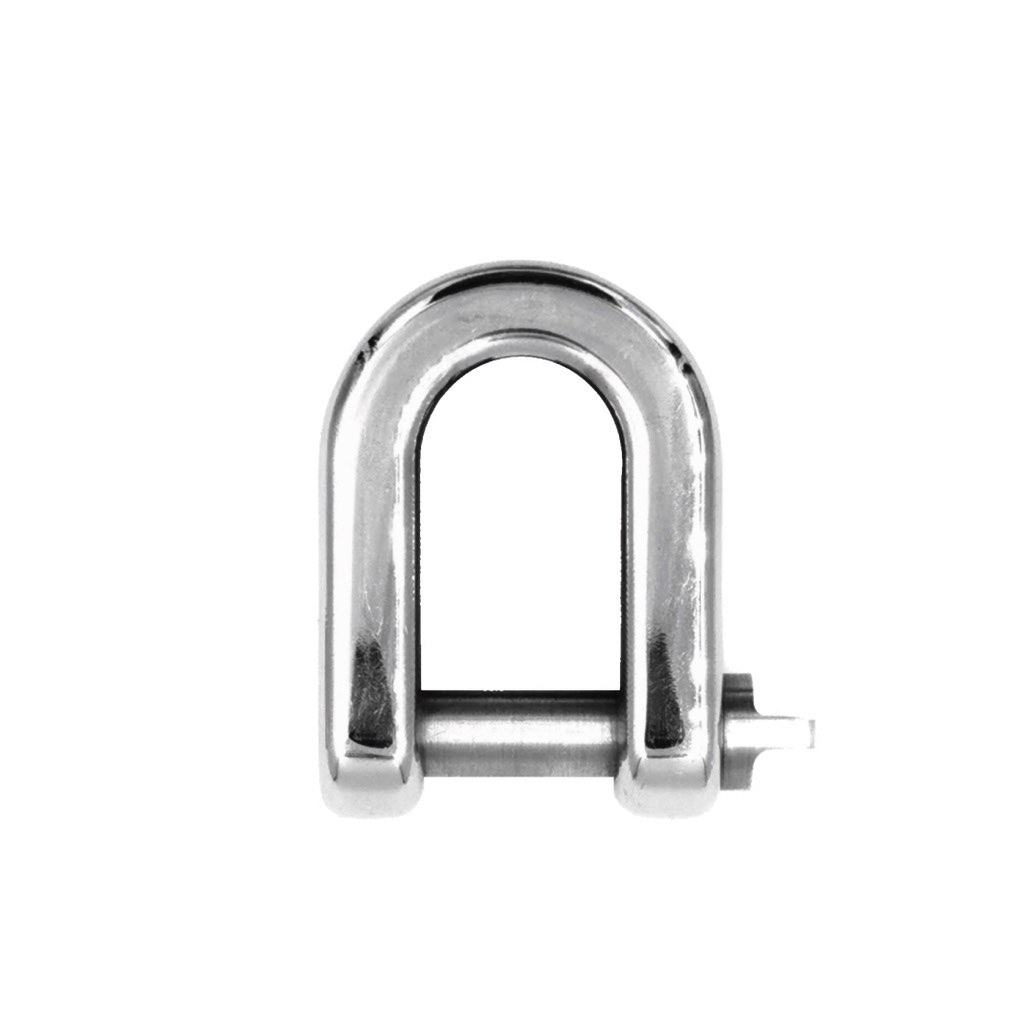

Morfrac powerfurl.[six] – Ti D-Shackle 10mm Pin (6t SWL)
The Morfrac Ti D-Shackle for powerfurl.[six] is a full-strength connection fitting designed to meet the heavy-load demands of the largest furler in the Powerfurl range. With a 10mm pin and a Safe Working Load of 6 tonnes, this CNC-machined titanium shackle offers unmatched strength-to-weight performance, corrosion resistance, and load integrity.
Engineered specifically for offshore-capable monohulls and multihulls, this shackle is certified to the same SWL as the furler itself—eliminating the common weak-link issue found with under-rated shackles from other manufacturers.
Key Features:
- Certified to 6t Safe Working Load
- 10mm pin diameter, compatible with powerfurl.[six] drum and swivel interfaces
- Precision-machined from aerospace-grade titanium
- Lightweight, non-corrosive, and ideal for bluewater or race applications
- Flush-profile D-shape to minimise windage and snagging
- Sold individually
This shackle reflects Morfrac’s commitment to system-wide strength and reliability—ensuring your hardware is never the limiting factor under load.
Specifications
| SWL (kg) | 6000 |
| A (mm) | 10 |
| B (mm) | 55.2 |
| C (mm) | 55.5 |
| D (mm) | 27.5 |
| E (mm) | 12.5 |
| F (mm) | 20.2 |
| G (mm) | 18 |
| H (mm) | 10 |
| Weight (g) | 121 |
