Specifications for Morfrac powerfurl.[one] - Ti D-Shackle 6mm pin - 1,5t SWL furler
| Pin Ø (mm) | 6 |
| SWL (kg) | 1500 |
| A (mm) | 6 |
| B (mm) | 28.5 |
| C (mm) | 32 |
| D (mm) | 17.9 |
| E (mm) | 6 |
| F (mm) | 10.5 |
| G (mm) | 11 |
| H (mm) | 5.5 |
| Weight (g) | 20 |

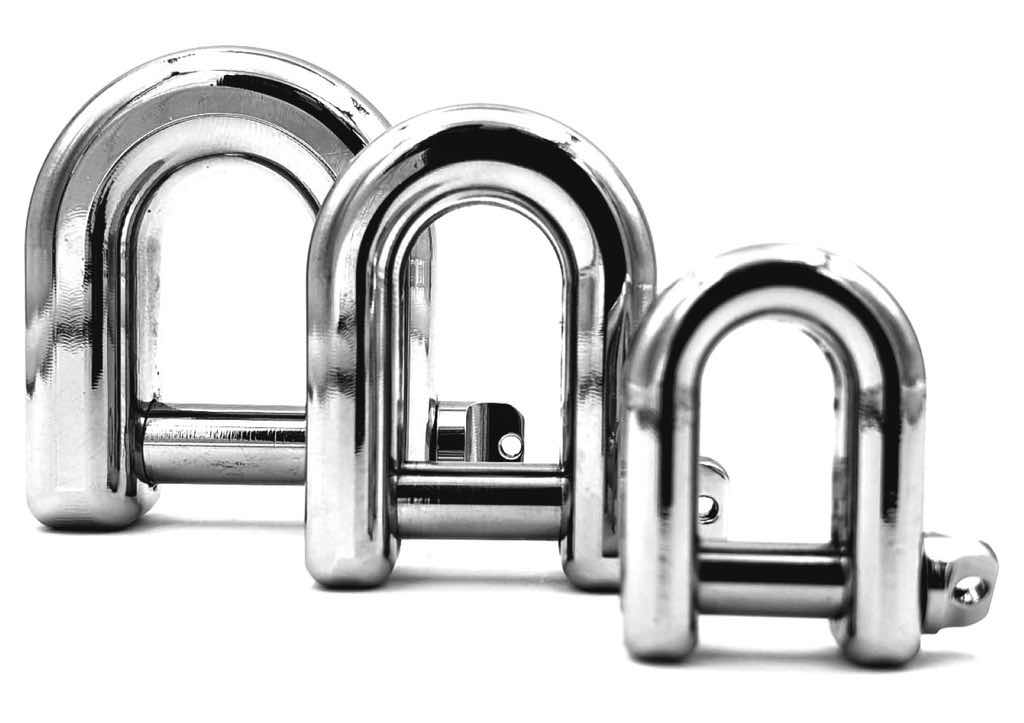

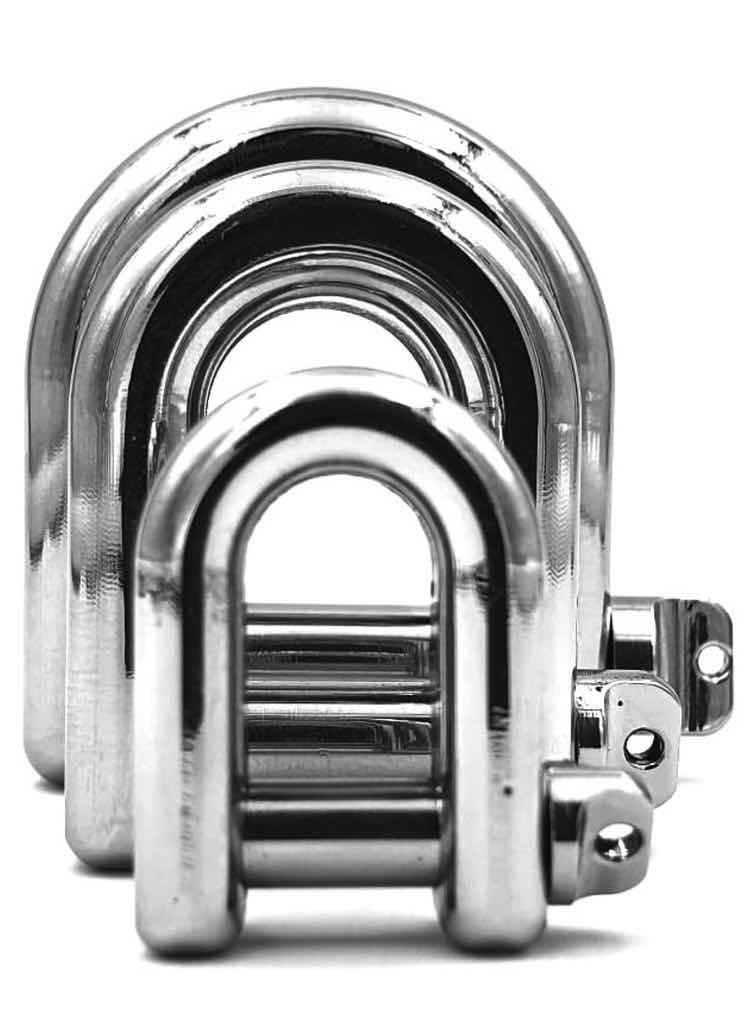

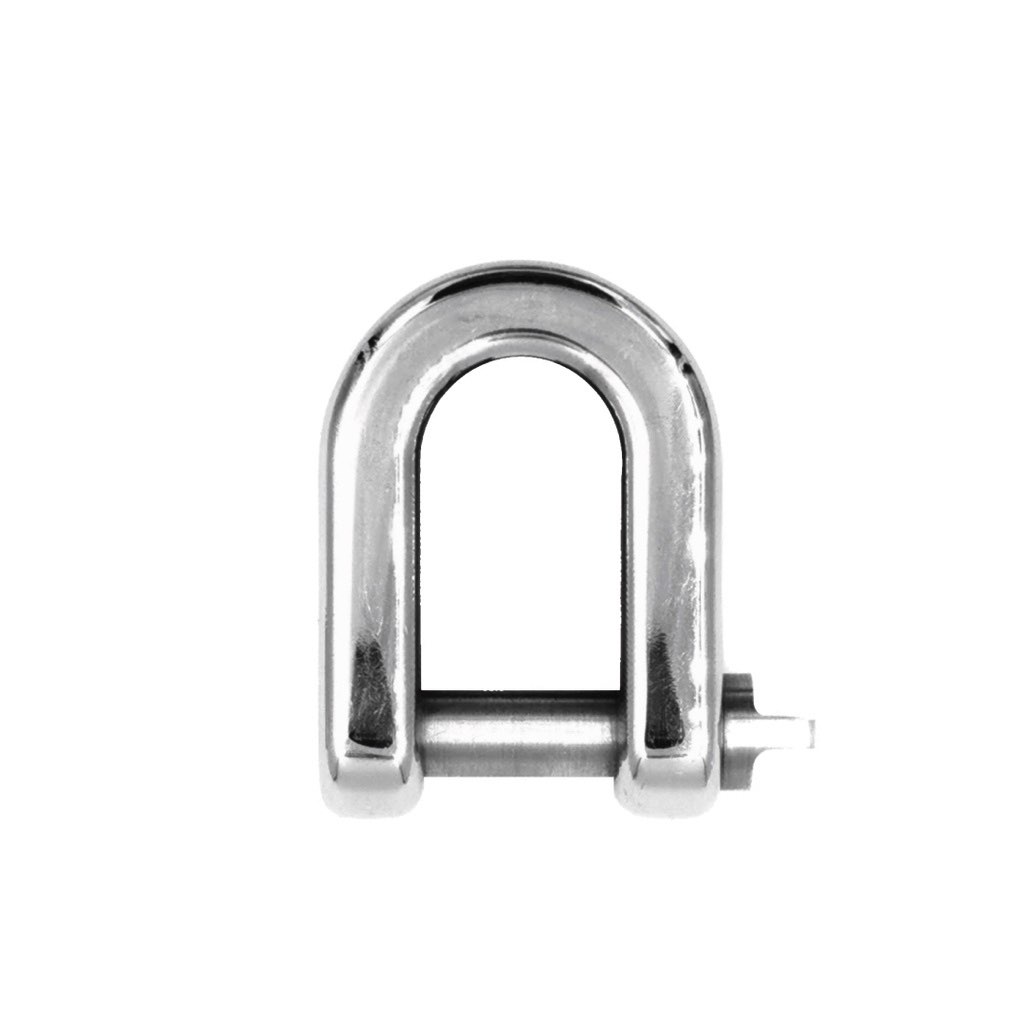

Morfrac powerfurl.[one] – Ti D-Shackle 6mm Pin (1.5t SWL)
The Morfrac Ti D-Shackle for powerfurl.[one] is a lightweight, high-strength titanium shackle designed specifically for use with the 1.5t SWL model in the Powerfurl range. Featuring a 6mm pin and compact D-shape geometry, this fitting is engineered to match the full Safe Working Load of the furler—ensuring there are no weak links in the system.
Machined from corrosion-proof titanium, the shackle offers the strength and security required for performance yachts while minimising weight and maintenance. It is ideal for small racing yachts, sports boats, and performance cruisers seeking a reliable, metal-to-metal connection.
Key Features:
- Certified to 1.5t Safe Working Load
- 6mm pin diameter – tailored for powerfurl.[one] drum and swivel terminals
- Machined from titanium for exceptional strength, low weight, and total corrosion resistance
- Compact D-shape with flush profile to reduce snagging and windage
- Compatible with Morfrac powerfurl.[one] components (sold separately)
- Sold individually
This titanium D-shackle delivers consistent performance and structural integrity to match the rated capacity of the entire furling system—ideal for serious sailors who demand full-load-rated hardware.
Specifications
| Pin Ø (mm) | 6 |
| SWL (kg) | 1500 |
| A (mm) | 6 |
| B (mm) | 28.5 |
| C (mm) | 32 |
| D (mm) | 17.9 |
| E (mm) | 6 |
| F (mm) | 10.5 |
| G (mm) | 11 |
| H (mm) | 5.5 |
| Weight (g) | 20 |
