Specifications for Morfrac powerfurl.[four] - Ti D-Shackle 10mm pin - 4,5t SWL furler
| Pin Ø (mm) | 10 |
| SWL (kg) | 4500 |
| A (mm) | 10 |
| B (mm) | 55.2 |
| C (mm) | 55.5 |
| D (mm) | 27.5 |
| E (mm) | 12.5 |
| F (mm) | 20.2 |
| G (mm) | 18 |
| H (mm) | 5.5 |
| Weight (g) | 121 |

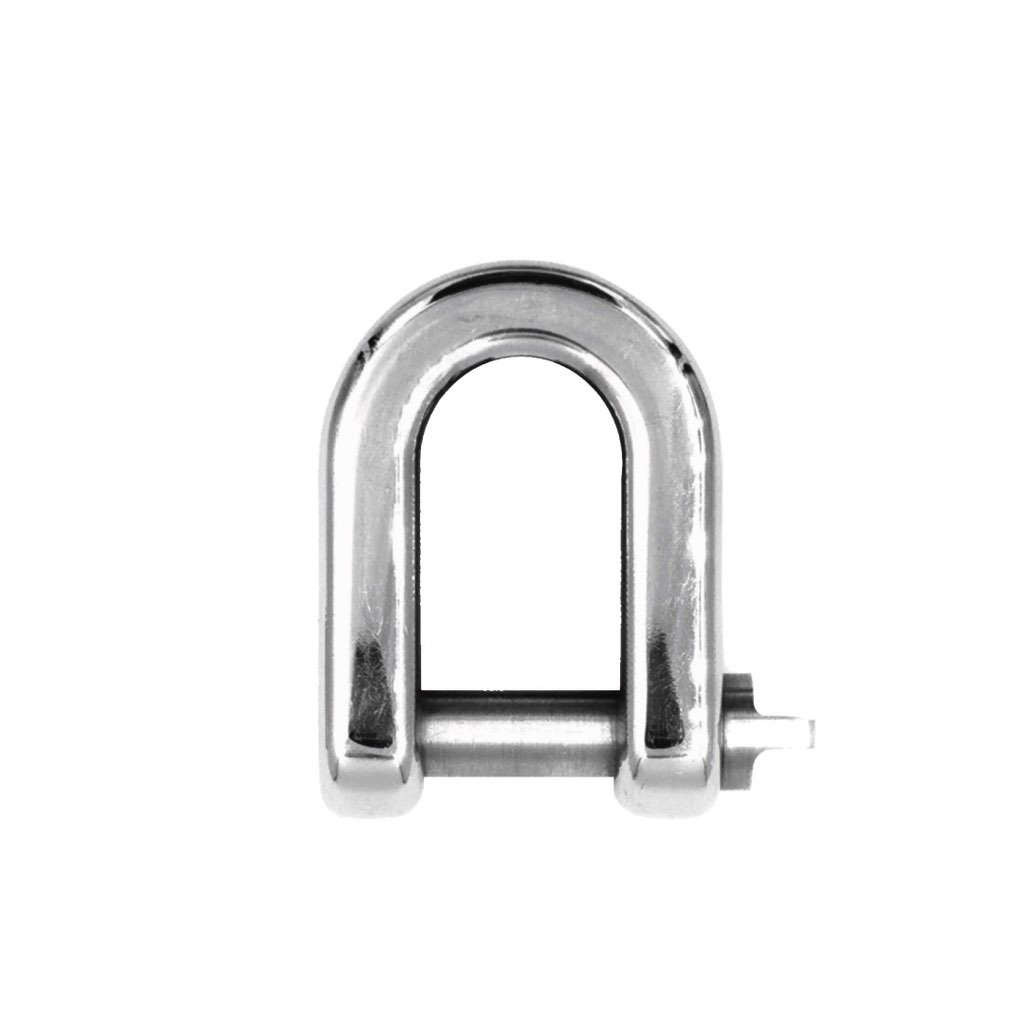

Morfrac powerfurl.[four] – Ti D-Shackle 10mm Pin (4.5t SWL)
The Morfrac Ti D-Shackle for powerfurl.[four] is a premium-grade connection fitting designed for use with the 4.5t SWL Powerfurl furler. CNC-machined from solid titanium, this 10mm-pin D-shackle is engineered to match the full working load of the furler—unlike conventional shackles from many manufacturers which are often rated below the furler’s SWL.
With its high strength-to-weight ratio, complete corrosion resistance, and flush-profile design, this titanium D-shackle is ideal for high-performance offshore and racing applications where reliability and load integrity are paramount.
Key Features:
- Certified to 4.5t Safe Working Load
- 10mm pin diameter, suited to powerfurl.[four] drum and swivel interfaces
- CNC-machined from aerospace-grade titanium – strong, lightweight, and corrosion-proof
- Flat-profile design to minimise snagging and windage
- Compatible with Morfrac modular terminals (drum and swivel sold separately)
- Sold individually
This fitting upholds Morfrac’s commitment to delivering full-system load integrity, ensuring that your terminal connections are as robust as the furler itself.

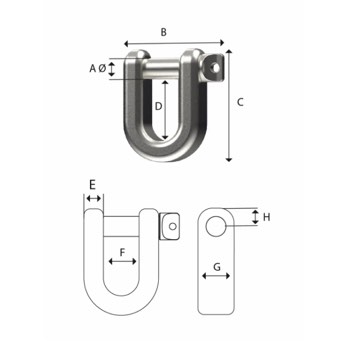

Specifications
| Pin Ø (mm) | 10 |
| SWL (kg) | 4500 |
| A (mm) | 10 |
| B (mm) | 55.2 |
| C (mm) | 55.5 |
| D (mm) | 27.5 |
| E (mm) | 12.5 |
| F (mm) | 20.2 |
| G (mm) | 18 |
| H (mm) | 5.5 |
| Weight (g) | 121 |
