Specifications for MORFRAC morfring Ø 30 mm - Low friction ring
| Total width (mm) | 12 |
| Recommended line - Max Ø (mm) | 8 |
| Inside Ø (mm) | 12 |
| Outside Ø (mm) | 30 |
| Outside line max Ø (mm) | 8 |
| SWL (kg) | 850 |
| NBL (kg) | 1700 |
| A (mm) | 30 |
| B (mm) | 12 |
| C (mm) | 12 |
| Weight (g) | 8 |

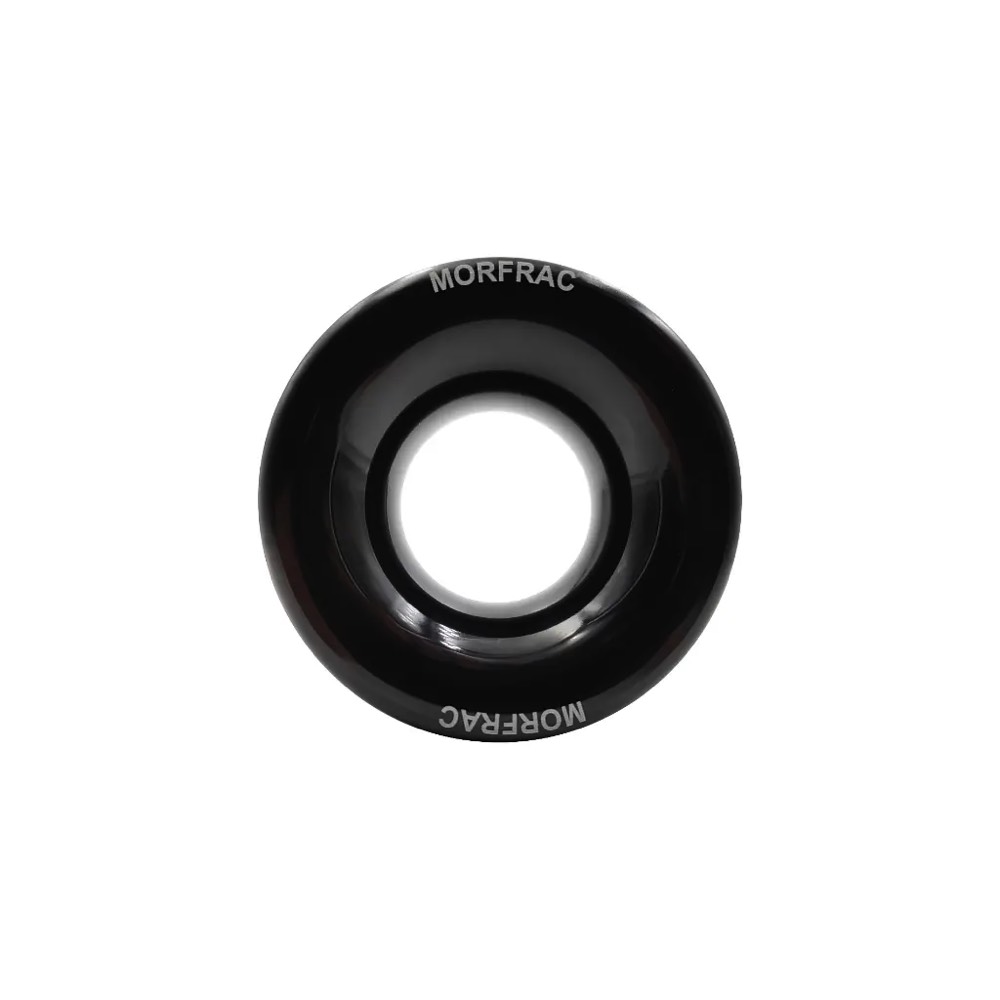

MORFRAC morfring Ø 30 mm – Low Friction Ring
Efficient. Durable. Versatile. The MORFRAC morfring Ø 30 mm is a lightweight, high-strength alternative to traditional pulley blocks, designed for low-friction line deflection in a wide variety of rigging scenarios. With its 30 mm outer diameter, it offers increased rope handling capacity while maintaining a compact footprint and excellent strength-to-weight ratio.
Thanks to Morfrac’s advanced hard anodising process, this ring features a smooth, ultra-durable surface that significantly reduces line wear and drag, even under repeated loading.
Key Features:
- Exceptional Surface Finish: Hard anodised to create a highly polished, abrasion-resistant surface that delivers excellent low-friction performance.
- Mid-Size Versatility: With a 30 mm OD, this ring strikes the perfect balance between compact size and increased load capacity—ideal for a wide range of rigging setups.
- Rope Compatibility: Handles lines up to 8mm in diameter, perfect for control lines, backstay adjusters, purchase systems, or soft shackles.
- Safe Working Load: Rated to 850 kg, offering strong, reliable performance for both static and semi-dynamic applications.
- Compact & Lightweight: Simpler and lighter than traditional blocks—ideal for racing sailors or those seeking minimalistic deck gear.
- Marine-Grade Materials: Hard anodised aluminium ensures long-term resistance to corrosion, UV, and mechanical wear in harsh marine environments.
The morfing Ø 30 mm is a go-to solution for sailors seeking maximum rigging efficiency in a simple, maintenance-free format—perfect for racing dinghies, sportsboats, and cruising yachts alike.
Specifications
| Total width (mm) | 12 |
| Recommended line - Max Ø (mm) | 8 |
| Inside Ø (mm) | 12 |
| Outside Ø (mm) | 30 |
| Outside line max Ø (mm) | 8 |
| SWL (kg) | 850 |
| NBL (kg) | 1700 |
| A (mm) | 30 |
| B (mm) | 12 |
| C (mm) | 12 |
| Weight (g) | 8 |
