Specifications for MORFRAC morfblock.[XL] 8 XL - Titanium friction block
| Bearing type | Plain bearing |
| Recommended line - Max Ø (mm) | 20 |
| Sheave Ø (mm) | 90 |
| SWL (kg) | 8000 |
| A (mm) | 165 |
| B (mm) | 90 |
| C (mm) | 70 |
| Weight (g) | 415 |

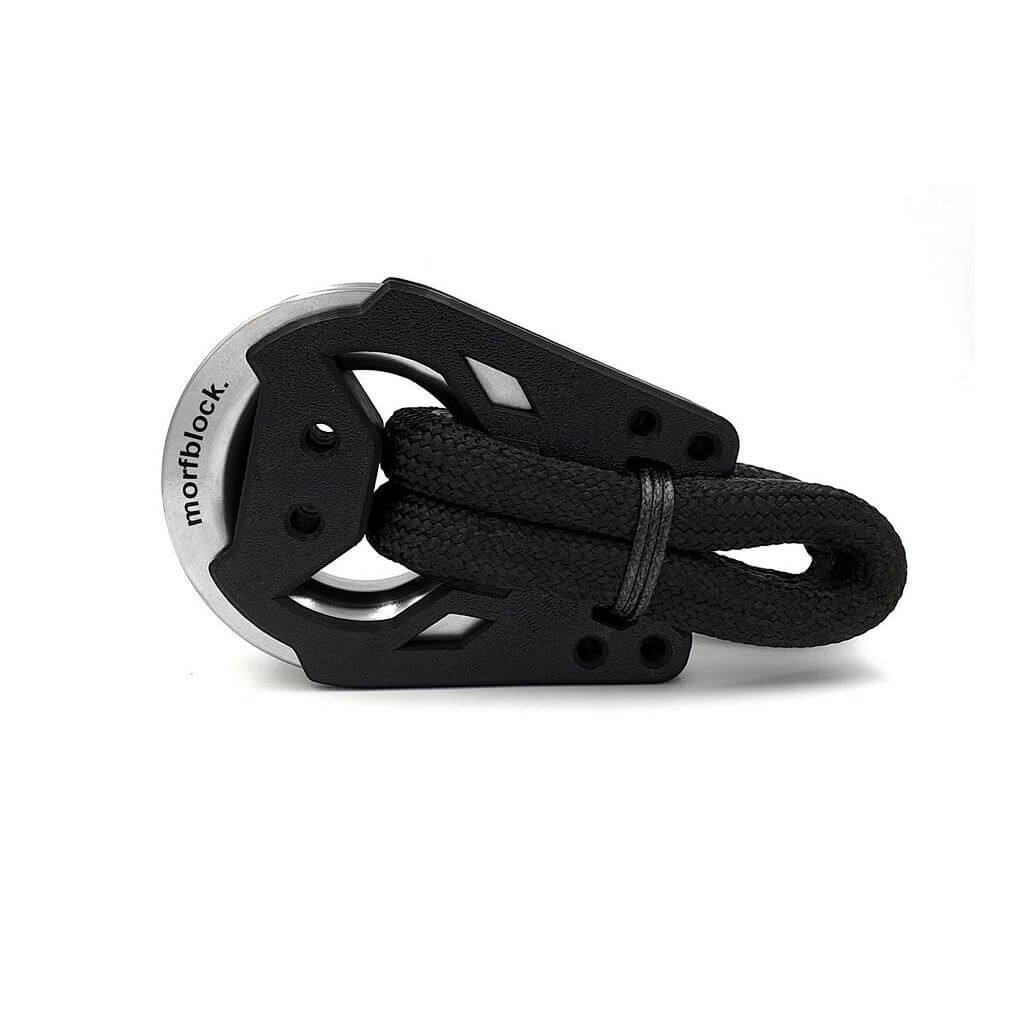

MORFRAC morfblock.[XL] 8 XL – Titanium Sheave Friction Block
Versatile. Rugged. Ready for serious loads. The MORFRAC morfblock.[XL] 8 XL is a robust mid-to-large capacity friction block designed to handle high-load, low-dynamic rigging scenarios with maximum reliability and minimum fuss. Built with aerospace-grade titanium sheaves, 3D-printed composite cheeks, and a supplied Dyneema® soft loop, it delivers precision-engineered performance without compromise.
Perfect for structural deflections, halyard management, and load-distribution setups on performance yachts and offshore vessels, the 8 XL is part of Morfrac’s friction block range designed to replace traditional pulleys in static applications—with reduced weight, zero servicing, and outstanding durability.
Key Features:
- Titanium Sheave: Machined titanium friction sheave provides excellent wear resistance, low friction, and unbeatable strength under continuous tension.
- Composite Cheeks: 3D-printed from high-strength composite materials for lightweight, marine-grade durability and shock resistance.
- 8 Tonne SWL: Engineered to withstand Safe Working Loads of up to 8 tonnes, making it suitable for large yacht and offshore racing loads.
- 20mm Line Capacity: Accepts rope diameters up to 20mm, ideal for powerful halyards, deflectors, and heavy-load rigging systems.
- Friction-Optimised Design: No bearings or sheave axles—designed for static or semi-static lines, where simplicity and reliability outperform complexity.
- Dyneema® Loop Included: Comes with a high-strength Dyneema® soft attachment for flexible, low-profile rigging integration.
- No Maintenance Needed: With no moving parts to seize, corrode, or wear out, the 8 XL offers consistent performance with zero upkeep.
The morfblock.[XL] 8 XL combines Morfrac’s material innovation with a rigging minimalist’s ethos—delivering top-tier strength and functionality in a sleek, corrosion-proof, and service-free package.
Specifications
| Bearing type | Plain bearing |
| Recommended line - Max Ø (mm) | 20 |
| Sheave Ø (mm) | 90 |
| SWL (kg) | 8000 |
| A (mm) | 165 |
| B (mm) | 90 |
| C (mm) | 70 |
| Weight (g) | 415 |
