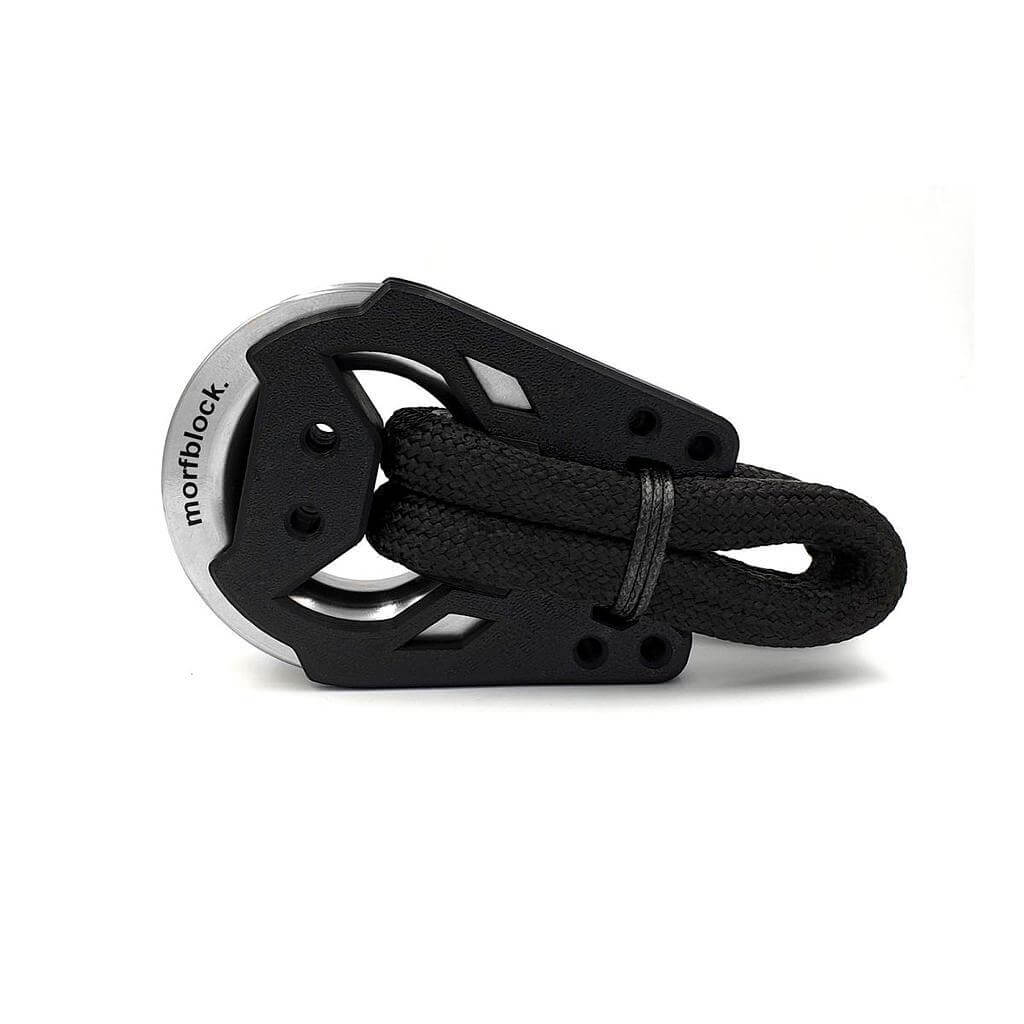

![MORFRAC morfblock.[XL] 10 XL - Titanium friction block](/web/image/product.product/36593/image_1024/%5BMS-MB-XL-10-HL%5D%20MORFRAC%20morfblock.%5BXL%5D%2010%20XL%20-%20Titanium%20friction%20block?unique=f367c79)
![MORFRAC morfblock.[XL] 10 XL - Titanium friction block](/web/image/product.product/36593/image_128/%5BMS-MB-XL-10-HL%5D%20MORFRAC%20morfblock.%5BXL%5D%2010%20XL%20-%20Titanium%20friction%20block?unique=f367c79)
Specifications for MORFRAC morfblock.[XL] 10 XL - Titanium friction block
| Bearing type | Plain bearing |
| Recommended line - Max Ø (mm) | 24 |
| Sheave Ø (mm) | 100 |
| SWL (kg) | 10000 |
| A (mm) | 185 |
| B (mm) | 100 |
| C (mm) | 74 |
| Weight (g) | 577 |
MORFRAC morfblock.[XL] 10 XL – Titanium Sheave Friction Block

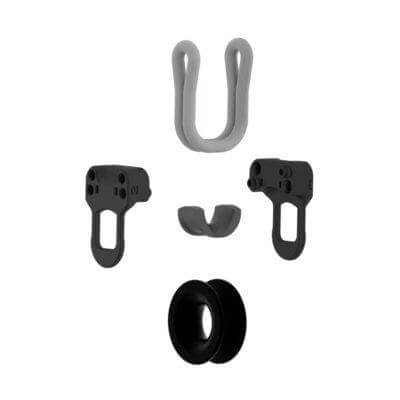

Ultra-strong. Ultra-light. Ultra-reliable. The MORFRAC morfblock.[XL] 10 XL is a cutting-edge friction block engineered for high-load, low-dynamic rigging applications. Designed with 3D-printed composite cheeks, a solid titanium sheave, and an integrated Dyneema® loop attachment, it delivers exceptional strength-to-weight performance for demanding offshore use.
This block is purpose-built for static and semi-static load scenarios—such as backstay cascades, halyard deflectors, or high-load sheeting points—where mechanical simplicity and long-term reliability are key. With no moving parts beyond the friction sheave, it offers a low-maintenance alternative to traditional pulley systems, backed by Morfrac’s reputation for innovation and precision.
Key Features:
- Titanium Sheave: The friction surface is CNC-machined from aerospace-grade titanium, delivering superb durability, low wear, and high load-handling capability.
- Composite Construction: Lightweight, 3D-printed composite cheeks provide strength, shock absorption, and excellent resistance to marine environments.
- High Load Capacity: Safe Working Load of 10 tonnes, making it ideal for large yacht applications with significant rigging demands.
- Generous Line Size: Accommodates ropes up to 24mm in diameter, suited for powerful halyards, deflectors, or structural rigging paths.
- Friction-Based Efficiency: Best suited for static or slow-running lines—a dependable, low-complexity solution with consistent performance.
- Integrated Dyneema® Loop: Supplied with a high-strength Dyneema® soft attachment for secure and flexible integration into rigging systems.
- Zero Maintenance: No bearings or moving axles means nothing to seize, corrode, or maintain—just dependable performance, season after season.
The morfblock.[XL] 10 XL is for sailors who demand maximum strength, minimal fuss, and uncompromising build quality. Perfect for performance cruisers and ocean-going yachts seeking efficiency without excess.
Specifications
| Bearing type | Plain bearing |
| Recommended line - Max Ø (mm) | 24 |
| Sheave Ø (mm) | 100 |
| SWL (kg) | 10000 |
| A (mm) | 185 |
| B (mm) | 100 |
| C (mm) | 74 |
| Weight (g) | 577 |
