Mantagua TINY 1 NM Tricolour + Anchor Light – Horizontal
The Mantagua TINY Range has been purpose-built for small sailing yachts, sportsboats, and racing yachts under 12 metres, offering compact, ultra-lightweight navigation lights that combine simplicity, efficiency, and durability. Ideal for masthead installation, the TINY range delivers full COLREG compliance while maintaining the smallest possible footprint and minimal power draw.

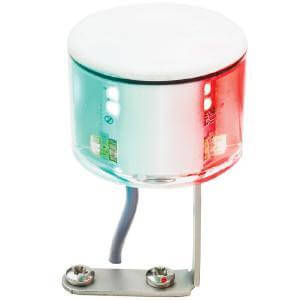

The TINY 1 NM Tricolour + Anchor Light combines a 360° white anchor light with a tricolour navigation light (red/green/white) in a single compact housing. This dual-function unit provides 1 NM visibility for both functions, making it the perfect all-in-one solution for smaller yachts looking to save space and wiring complexity at the masthead. Switching between tricolour and anchor modes is straightforward, allowing easy operation from the cockpit or electrical panel.
Fully encapsulated in epoxy resin, the TINY Tricolour + Anchor Light is completely waterproof, shockproof, and vibration-resistant. Despite its small size, it offers IP67 waterproof protection, ensuring long-lasting performance even in harsh offshore conditions. Operating on 12 VDC, it consumes just 1.8 W, making it highly efficient for battery-powered systems.
Supplied with 15 metres of pre-fitted cable, installation is simple and flexible, even on smaller rigs. It is also fully VHF/AIS compatible, ensuring zero interference with onboard communication or navigation equipment.
Key features:
- Compact horizontal-mount tricolour and anchor combination light
- Tricolour (red/green/white) and all-round white anchor light in one unit
- 1 NM visibility (COLREG compliant) – for vessels under 12 m
- Fully epoxy resin-sealed – waterproof, vibration-proof, and shock-resistant
- IP67 waterproof and UV resistant
- Operating voltage: 12 VDC
- Very low power draw (1.8 W) – ideal for energy-efficient small yachts
- Supplied with 15 m of cable for masthead installation
- VHF/AIS friendly – no interference with onboard systems
- Lightweight, compact design – perfect for masthead or backstay mounting

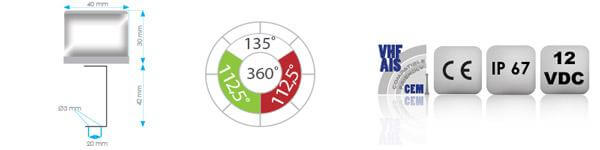

Specifications
| Luminous Intensity (cd) | >1.1 |
| Power supply type | dc. |
| Visibility (NM) | 1 |
| Power (W) | 1.8 |
| Outside Ø (mm) | 40 |
| Operating voltage (V) | 12 |
| Material | Epoxy resin |
| Height (mm) | 30 |
| Warranty (yrs) | 2 |
| Water resistance | IP67 |
| Weight (g) | 85 |
