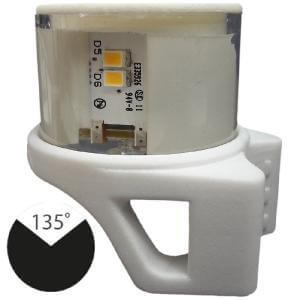

Mantagua TINY 2 NM Stern Light – Vertical (White 135°)
The Mantagua TINY Range has been specifically developed for small yachts, sportsboats, and racing yachts under 12 metres, providing a compact and ultra-lightweight navigation light solution without compromising reliability or compliance. Designed to meet COLREG standards, these lights combine minimalist design, easy installation, and exceptional efficiency — ideal for sailors where space, weight, and simplicity matter most.
The TINY 2 NM Stern Light emits a 135° white beam with a 2 nautical mile visibility range, providing clear, compliant aft lighting for vessels up to 12 metres. Its vertical mounting configuration makes it ideal for installation on the pushpit or transom, offering a discreet and aerodynamic profile that suits modern boat designs.
Each TINY light is fully sealed in epoxy resin, providing complete protection against vibration, impact, and saltwater ingress. Built to IP67 waterproof standards, the light delivers outstanding durability despite its incredibly small footprint. Operating on 12 VDC, it draws only 0.6 W, making it one of the most energy-efficient navigation lights in its class.
Supplied with 10 metres of pre-fitted cable, installation is simple and flexible, even on smaller yachts with limited electrical routing options. The light is also VHF/AIS compatible, ensuring zero interference with onboard electronics.
Key features:
- Compact vertical-mount LED stern light for boats under 12 m
- White 135° beam, 2 NM visibility (COLREG compliant)
- Fully epoxy resin-sealed – waterproof, vibration-proof, and shock-resistant
- Ultra-lightweight design: approx. 50 g
- IP67 waterproof, UV and impact resistant
- Operating voltage: 12 VDC
- Extremely low power draw (0.6 W) – ideal for small electrical systems
- Supplied with 10 m of cable for easy installation
- VHF/AIS friendly – no interference with onboard systems
Specifications
| Beam angle (degrees) | 135 |
| Luminous Intensity (cd) | >1.1 |
| Power supply type | dc. |
| Visibility (NM) | 2 |
| Power (W) | 1.8 |
| Outside Ø (mm) | 40 |
| Operating voltage (V) | 12 |
| Material | Epoxy resin |
| Height (mm) | 30 |
| Warranty (yrs) | 2 |
| Water resistance | IP67 |
| Weight (g) | 60 |
