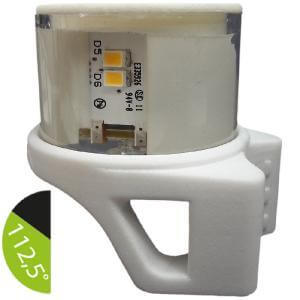

Mantagua TINY 1 NM Starboard Navigation Light – Vertical (Green 112.5°)
The Mantagua TINY Range is designed for small yachts, sportsboats, and racing yachts under 12 metres, offering ultra-compact and lightweight navigation lights that deliver full compliance and durability in a minimalist form. Built for sailors who value simplicity and efficiency, these lights provide excellent performance while minimising power consumption and installation complexity.
The TINY 1 NM Starboard Navigation Light projects a 112.5° green beam with a 1 nautical mile visibility range, fully compliant with COLREG regulations for vessels under 12 m. Its vertical mounting configuration allows straightforward installation on pushpits, balcony rails, or transoms, providing a slim and aerodynamic profile that blends neatly with the hull or deck hardware.
Each unit is completely sealed in epoxy resin, ensuring long-lasting protection against vibration, impact, and saltwater corrosion. The housing meets IP67 waterproof standards, guaranteeing full environmental sealing despite its compact dimensions. Operating on 12 VDC, it consumes just 0.6 W, making it exceptionally efficient for small-boat electrical systems.
Supplied with 10 metres of pre-fitted cable, the light is easy to install even on smaller yachts with limited cable routing. It is also VHF/AIS compatible, ensuring no interference with onboard communication or navigation systems.
Key features:
- Compact vertical-mount LED starboard light for boats under 12 m
- Green 112.5° beam, 1 NM visibility (COLREG compliant)
- Fully epoxy resin-sealed – waterproof, vibration-proof, and shock-resistant
- Ultra-lightweight construction: approx. 50 g
- IP67 waterproof, UV and impact resistant
- Operating voltage: 12 VDC
- Very low power draw (0.6 W) – ideal for small electrical systems
- Supplied with 10 m of cable for easy installation
- VHF/AIS friendly – no interference with onboard systems
Specifications
| Beam angle (degrees) | 112.5 |
| Luminous Intensity (cd) | >1.1 |
| Power supply type | dc. |
| Visibility (NM) | 1 |
| Power (W) | 1.8 |
| Outside Ø (mm) | 40 |
| Operating voltage (V) | 12 |
| Material | Epoxy resin |
| Height (mm) | 30 |
| Warranty (yrs) | 2 |
| Water resistance | IP67 |
| Weight (g) | 60 |
