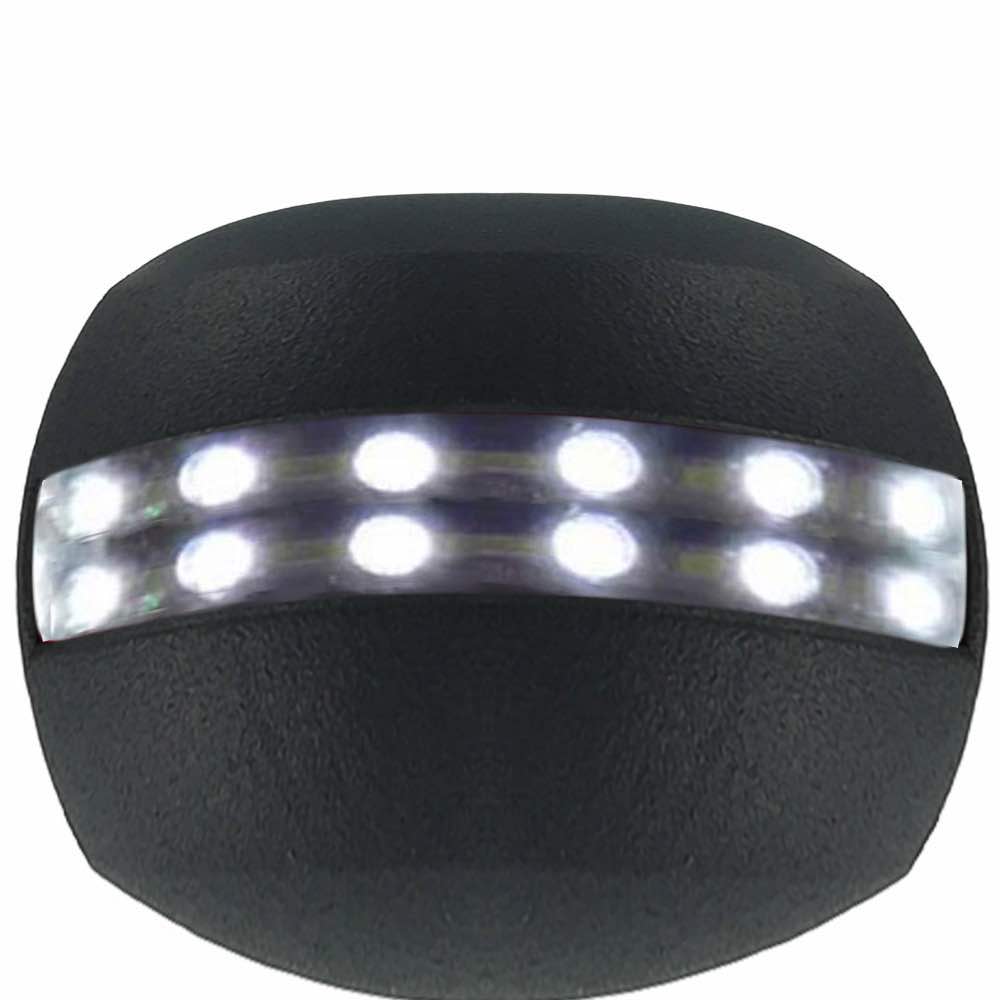

Mantagua RACING 2 NM Stern Light – Vertical (White 135°)
The Mantagua RACING Range has been developed for high-performance offshore and inshore racing yachts, delivering exceptional reliability, ultra-low weight, and minimal power consumption. Designed to meet COLREG standards for vessels under 20 metres, these lights provide professional-grade visibility in a sleek, compact form built for competitive sailing.
The RACING 2 NM Stern Light emits a 135° white beam with a 2 nautical mile visibility range, ensuring compliant aft illumination for racing yachts. Its vertical mounting configuration makes it ideal for pushpit or transom installations, providing a streamlined and low-drag profile perfectly suited to modern performance hulls and deck layouts.
Each Mantagua RACING light incorporates dual independent LED circuits with separate power feeds, offering built-in redundancy in line with offshore race regulations — ensuring continuous operation in demanding conditions. The fully resin-sealed body provides total waterproofing, vibration resistance, and impact protection, guaranteeing reliable performance even after prolonged exposure to saltwater and shock loads.
This model is available in two finish options — a black cover or a white cover — allowing sailors to match the light to the yacht’s colour scheme or deck fittings.
Rated IP67 waterproof, it operates on 9–30 VDC, consumes only 0.8 W, and is fully VHF/AIS compatible, ensuring no interference with onboard communication and navigation equipment.
Key features:
- Vertical-mount LED stern light for racing yachts
- White 135° beam, 2 NM visibility (COLREG compliant)
- Dual LED circuits with separate power feeds for redundancy and race compliance
- Compact, aerodynamic design – ideal for pushpit or transom mounting
- Available with black or white cover options
- Fully resin-sealed housing – waterproof, vibration-proof, and shock-resistant
- Ultra-lightweight: approx. 140 g
- IP67 waterproof, UV and impact resistant
- Operating voltage: 9–30 VDC
- VHF/AIS friendly – no interference with onboard systems
- Extremely low power draw (0.8 W) – ideal for energy-efficient race installations
Specifications
| Colour* | Black or White |
| Beam angle (degrees) | 135 |
| Luminous Intensity (cd) | >5.4 |
| Total width (mm) | 68 |
| Total depth (mm) | 34 |
| Power supply type | dc. |
| Visibility (NM) | 2 |
| Power (W) | 0.8 |
| Operating voltage (V) | 9-30 |
| Material | Epoxy resin |
| Height (mm) | 55 |
| Warranty (yrs) | 2 |
| Water resistance | IP67 |
| Weight (g) | 140 |
