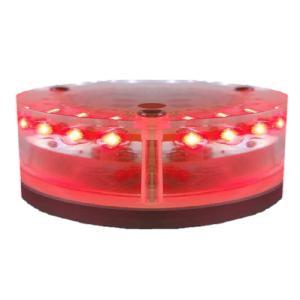

Mantagua RACING 2 NM Port Navigation Light – Horizontal (Red 112.5°)
The Mantagua RACING Range is purpose-built for competitive sailing, combining ultra-lightweight construction, race-compliant redundancy, and uncompromising reliability. Designed to meet COLREG standards for vessels under 20 metres, these lights deliver professional-level performance optimised for offshore and inshore racing yachts.
The RACING 2 NM Port Navigation Light provides a 112.5° red beam with a 2 nautical mile visibility range, ensuring compliance and visibility while keeping weight and power draw to a minimum. Its horizontal mounting format makes it ideal for deck, pushpit, or transom installations on performance yachts.
Each Mantagua RACING light incorporates two independent LED plates and separate power circuits, enabling redundancy in accordance with offshore racing regulations — a critical safety and compliance feature. The fully resin-sealed body ensures complete waterproofing and vibration resistance, while the compact, low-drag housing maintains a sleek aerodynamic profile.
Built to IP67 waterproof standards, these lights are resistant to salt, impact, and UV exposure. They operate on 9–30 VDC and are VHF/AIS compatible, preventing interference with essential onboard systems.
Key features:
- Horizontal-mount LED navigation light for racing yachts
- Red LED port light, 112.5° coverage, 2 NM visibility (COLREG compliant)
- Dual LED plates with separate power feeds for race compliance and redundancy
- Ultra-lightweight design: just 230 g
- Fully resin-sealed housing for total waterproofing and vibration resistance
- IP67 waterproof, UV and impact resistant
- Operating voltage: 9–30 VDC
- VHF/AIS friendly – no interference with communication systems
- Minimal power draw (0.8 W) – ideal for energy-efficient racing systems
Specifications
Beam angle (degrees) | 112.5 |
Luminous Intensity (cd) | >5.4 |
Power supply type | dc. |
Visibility (NM) | 2 |
Power (W) | 0.8 |
Outside Ø (mm) | 70 |
Operating voltage (V) | 9-30 |
Material | Aluminium & Epoxy resin |
Height (mm) | 39 |
Warranty (yrs) | 2 |
Water resistance | IP67 |
Weight (g) | 230 |
