Mantagua RACING 2NM Combined Side Lights - Horizontal (Green & Red 112.5°)
Mantagua RACING 2 NM Combined Side Lights – Horizontal (Green & Red 112.5°)
The Mantagua RACING Range has been purpose-built for offshore and inshore racing yachts, where weight, reliability, and efficiency are critical. Designed to meet COLREG standards for vessels under 20 metres, these lights provide professional-grade visibility in a compact, ultra-light package optimised for high-performance sailing.

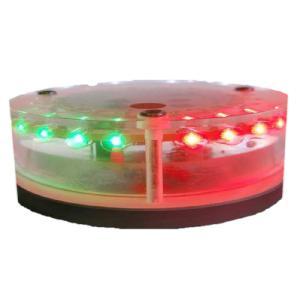

The RACING 2 NM Combined Side Light integrates green (starboard) and red (port) LEDs into a single compact housing, each covering 112.5°, for a combined 225° arc of visibility. Delivering a 2 nautical mile range, this dual-colour light simplifies installation and wiring while maintaining full compliance and reliability. Its horizontal mounting format makes it ideal for pushpit or transom installation on racing yachts where streamlined design and minimal hardware are priorities.
Each unit features dual independent LED plates with separate power feeds, offering redundancy that complies with offshore race regulations — ensuring lighting remains operational even in the event of partial failure. The housing is fully resin-sealed, guaranteeing total waterproofing and vibration resistance while keeping the overall weight extremely low.
Built to IP67 waterproof standards, the light is resistant to salt, UV, and physical impact. It operates on 9–30 VDC, consumes only 1.6 W, and is VHF/AIS compatible, ensuring no interference with onboard communication or navigation systems.
Key features:
- Horizontal-mount combined port/starboard LED navigation light for racing yachts
- Green and red LEDs, 112.5° each, 2 NM visibility (COLREG compliant)
- Dual LED plates with separate power feeds for redundancy and race compliance
- Compact, low-drag design for performance yacht installations
- Fully resin-sealed housing – waterproof, vibration-proof, and shock-resistant
- Ultra-lightweight: approx. 230 g
- IP67 waterproof, UV and impact resistant
- Operating voltage: 9–30 VDC
- VHF/AIS friendly – no interference with onboard systems
- Low power draw (1.6 W) – ideal for energy-efficient racing systems
Specifications
| Beam angle (degrees) | 112.5 |
| Luminous Intensity (cd) | >5.4 |
| Power supply type | dc. |
| Visibility (NM) | 2 |
| Power (W) | 0.8 |
| Outside Ø (mm) | 70 |
| Operating voltage (V) | 9-30 |
| Material | Aluminium & Epoxy resin |
| Height (mm) | 39 |
| Warranty (yrs) | 2 |
| Water resistance | IP67 |
| Weight (g) | 230 |
