Mantagua NAVIPRO Compact 3 NM Masthead Light (White 225°)
The Mantagua NAVIPRO Compact Range delivers professional-grade LED navigation lights in a sleek, low-profile design. Engineered for yachts, motorboats, and workboats up to 50 metres, these lights combine modern aesthetics with full COLREG compliance. The compact form factor makes them ideal where a discreet installation is required, while still ensuring long-range visibility and reliability.

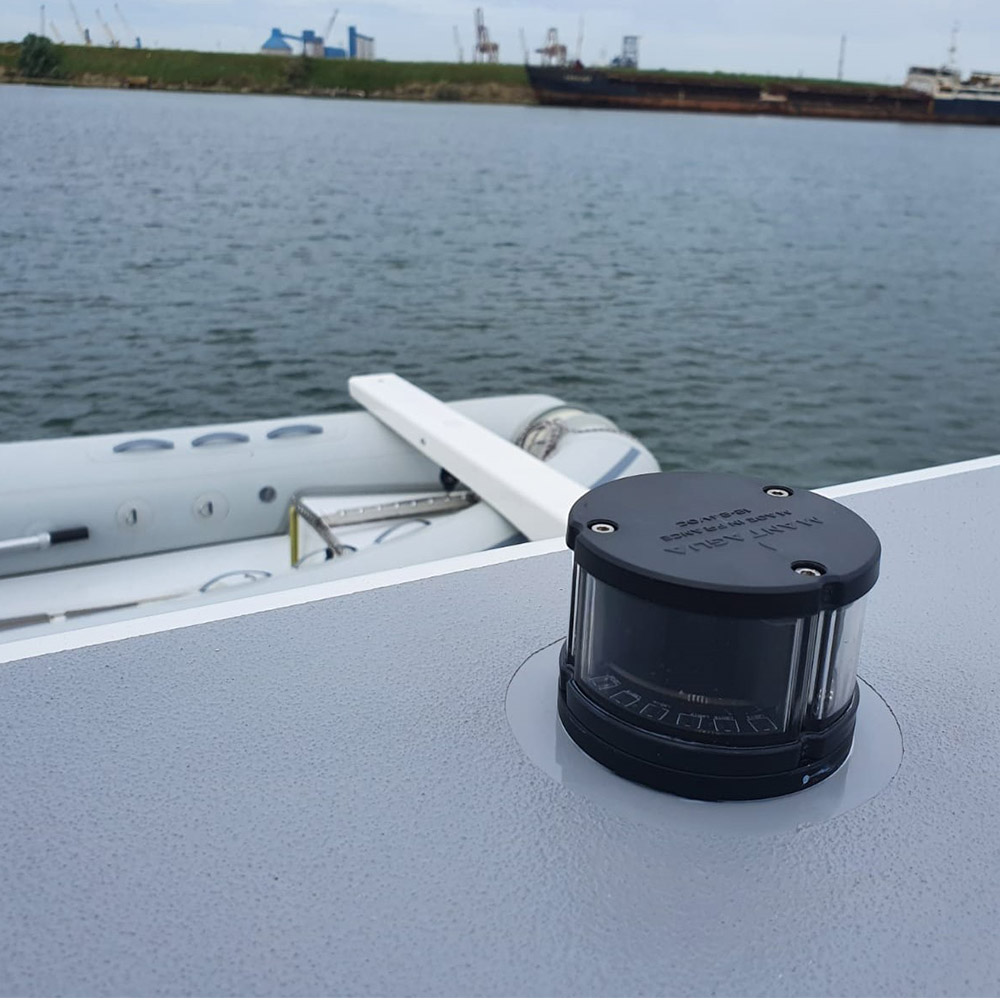

The NAVIPRO Compact 3 NM Masthead Light provides a 225° forward white beam with a 3 nautical mile visibility range, making it fully compliant as a masthead navigation light under COLREG regulations for vessels up to 20 metres. Its low-profile, streamlined housing offers a modern and unobtrusive installation, ideal for yachts and smaller professional craft.
All NAVIPRO Compact lights are Wheelmark certified (MED 60427/A0) and CE approved, ensuring the highest standards of safety and performance. Designed for durability, this masthead light features IP67 waterproofing, UV-resistant housing, and energy-efficient LED technology that delivers long service life with minimal power consumption. Importantly, the NAVIPRO range has been tested to ensure zero interference with onboard electronics such as VHF and AIS, guaranteeing reliable operation in all conditions.
Key features:
- Part of the low-profile NAVIPRO Compact Range
- White LED masthead light, 225° coverage
- 3 NM visibility range (COLREG compliant)
- For yachts and workboats up to 20 m
- Wheelmark certified (MED 60427/A0) and CE approved
- Modern, low-profile design for streamlined installation
- IP67 watertight and UV-resistant housing
- LED technology: low power draw, long service life
- Tested for zero interference with VHF and AIS systems
Spezifikationen
| Beam angle (degrees) | 225 |
| Width (mm) | 70 |
| Connection | 1m Cable |
| Boat size (m) | 12-20M |
| Luminous Intensity (cd) | >15 |
| Sichtweite (NM) | 3 |
| Leistung (W) | 4.32 |
| Spannung unter Betrieb | 9-30 |
| Höhe (mm) | 50 |
| Garantie (Jahren) | 2 |
| Wasserdichtigkeit | IP67 |
| Gewicht (g) | 190 |
| Certification | WHEELMARK 60427/A0 MED |
