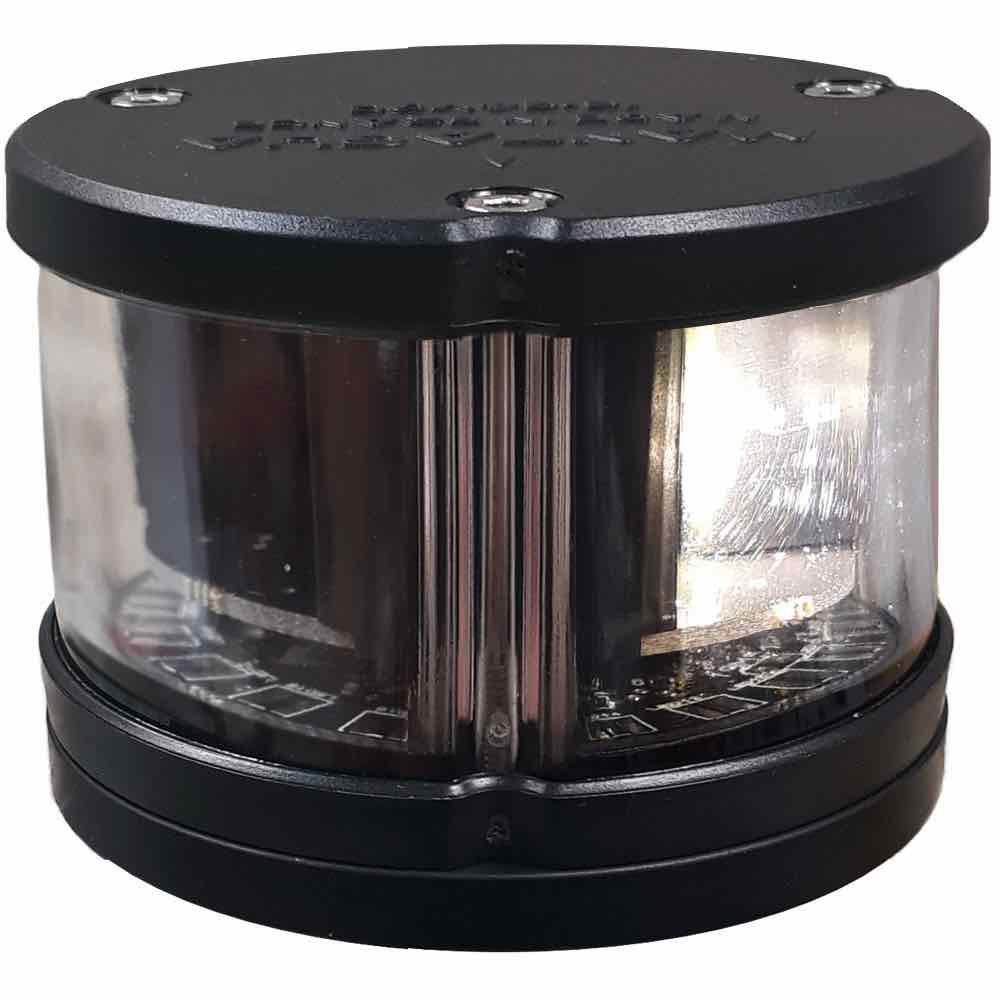

Mantagua NAVIPRO Compact 2 NM White 180°
The Mantagua NAVIPRO Compact Range delivers professional-grade LED navigation lights in a sleek, low-profile design. Built for yachts, motorboats, and professional workboats up to 50 metres, these lights combine modern aesthetics, robust construction, and full compliance where applicable under COLREG regulations.
The NAVIPRO Compact 2 NM White 180° Light provides a half-sector white beam (180°) with a visibility range of 2 nautical miles. Unlike masthead (225°), stern (135°), or all-round anchor lights (360°), a 180° white light is not part of the standard navigation light set for sailing or motor yachts under COLREG 72. Instead, it is intended for specialist or commercial applications, such as workboats, tugs, or pilot vessels, where custom light sectors are required to meet local or operational regulations. It may also be used in paired configurations (e.g. port/starboard duplicated sectors) for specific signalling needs.
Like all NAVIPRO Compact units, this light is Wheelmark certified (MED 60427/A0) and CE approved, ensuring the highest standards of reliability and safety. It features IP67 waterproofing, UV-resistant housing, and energy-efficient LED technology, delivering long service life and very low power consumption. Tested to avoid interference with VHF and AIS systems, it provides dependable performance for professional operators.
Key features:
- Part of the low-profile NAVIPRO Compact Range
- White LED 180° half-sector light
- 2 NM visibility range
- Not a standard sailing navigation light – intended for specialist or commercial applications (e.g. workboats, tugs, pilot boats)
- Wheelmark certified (MED 60427/A0) and CE approved
- IP67 watertight and UV-resistant housing
- LED technology: low power draw, long service life
- Tested for zero interference with VHF and AIS systems
Specifications
| Beam angle (degrees) | 180 |
| Width (mm) | 70 |
| Connection | 1m Cable |
| Luminous Intensity (cd) | >5.4 |
| Power (W) | 3.24 |
| Operating voltage (V) | 9-30 |
| Height (mm) | 50 |
| Warranty (yrs) | 2 |
| Water resistance | IP67 |
| Weight (g) | 190 |
| Certification | WHEELMARK 60427/A0 MED |
