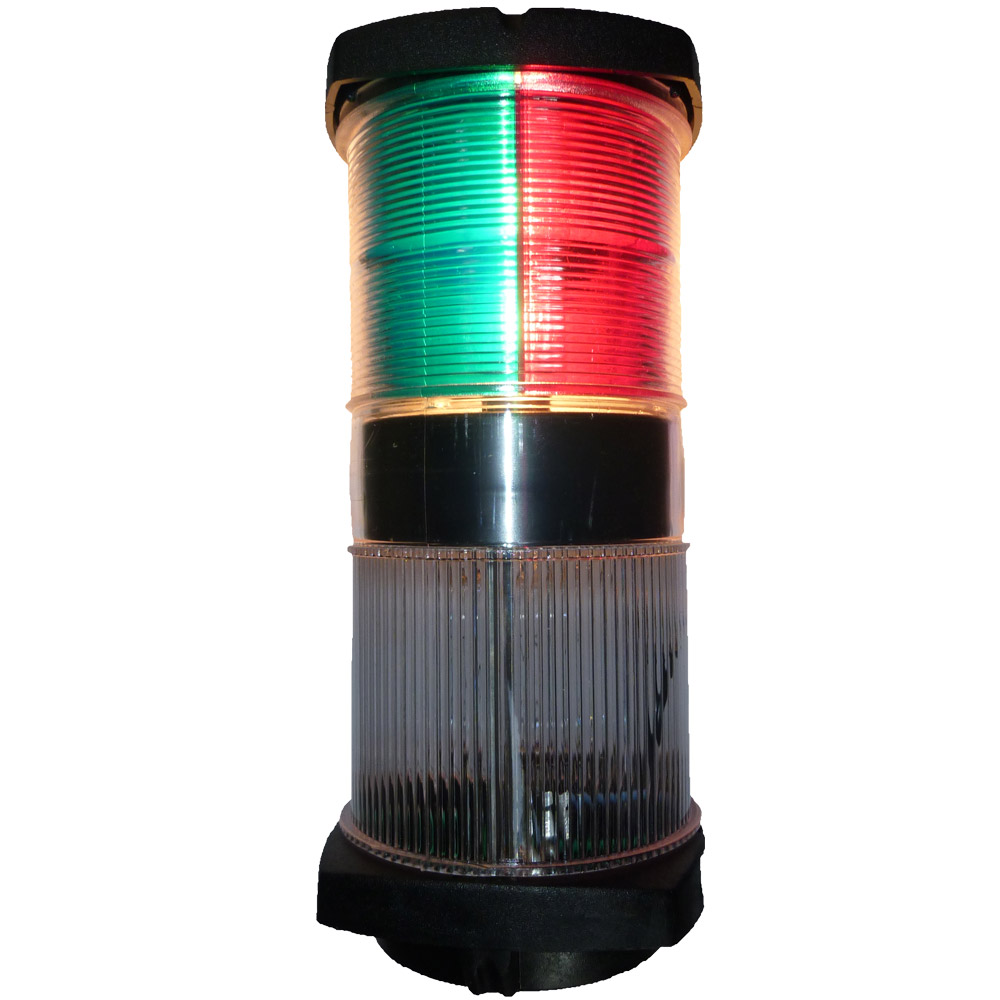

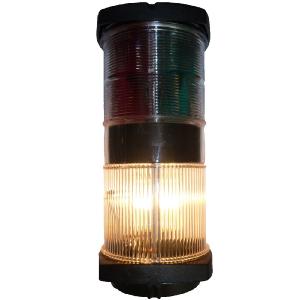

Mantagua Classical Tricolour with Anchor Navigation Light 3 NM
The Mantagua Classical Tricolour with Anchor Light combines port, starboard, stern, and anchor functions into a single compact unit, providing a versatile all-in-one navigation light solution. With a 3 nautical mile visibility range, it fully complies with COLREG requirements for vessels up to 20 metres.
As part of Mantagua’s Classic Range, this model is designed for traditional yachts and heritage-styled vessels where maintaining an authentic aesthetic is essential. It delivers the timeless look of classic fittings while incorporating the reliability and efficiency of modern LED technology. For more contemporary yachts, Mantagua’s NaviPro Range offers a more advanced and performance-focused option.
The light’s LED system ensures very low power consumption and long service life, making it ideal for energy-conscious cruising. With a horizontal base mount, installation is straightforward, and its watertight, UV-resistant housing ensures dependable performance in harsh marine environments.
Key features:
- Classic aesthetic – ideal for traditional yachts
- Combined tricolour (port, starboard, stern) plus anchor function
- 3 NM visibility range (COLREG compliant)
- For vessels up to 20 m
- Authentic design for heritage or classically styled boats
- LED efficiency: low power draw, long service life
- Horizontal base mounting
- Watertight and UV-resistant construction
Specifications

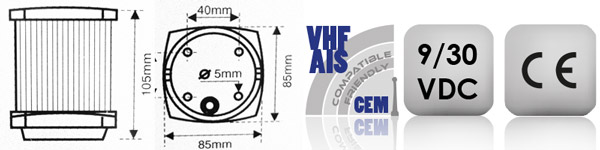

| Width (mm) | 85 |
| Luminous Intensity (cd) | >5.4 |
| Visibility (NM) | 3 |
| Power (W) | 2.4 |
| Operating voltage (V) | 9-30 |
| Height (mm) | 200 |
| Warranty (yrs) | 2 |
| Weight (g) | 450 |
