Mantagua Classical Port Sidelight (Red 112.5°) 1 NM
The Mantagua Classical Port Sidelight offers a red 112.5° navigation light with 1 nautical mile visibility, designed in line with COLREG requirements for boats up to 12 metres. Its classic aesthetic makes it the ideal choice for traditional yachts and heritage-styled vessels, where maintaining original looks is as important as reliable performance.
As part of the Classic Range, this light is intended for sailors seeking authentic styling. For modern yachts, Mantagua’s NaviPro Range provides a more contemporary and performance-led alternative, while the Classical Range remains the go-to solution for those who value a timeless appearance.
Equipped with energy-efficient LED technology, it offers very low power consumption and a long service life. The horizontal base mount ensures easy installation, while its watertight and UV-resistant housing guarantees durability in demanding marine environments.
Key features:
- Classic aesthetic – ideal for traditional yachts
- Red LED port sidelight, 112.5° coverage
- 1 NM visibility range (COLREG compliant)
- For boats up to 12 m
- Authentic design for heritage or classically styled vessels
- LED efficiency: low power draw, long service life
- Horizontal base mounting
- Watertight and UV-resistant design

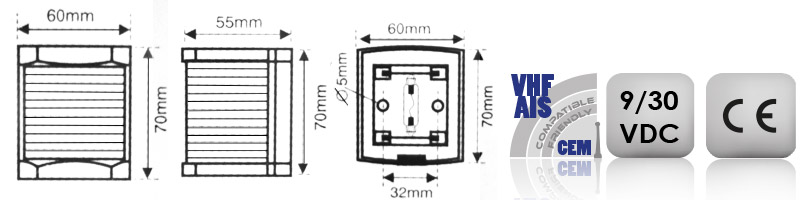

Specifications
| Beam angle (degrees) | 112.5 |
| Width (mm) | 55 |
| Luminous Intensity (cd) | >1.1 |
| Length (mm) | 60 |
| Visibility (NM) | 1 |
| Power (W) | 1.2 |
| Operating voltage (V) | 9-30 |
| Height (mm) | 70 |
| Warranty (yrs) | 2 |
| Weight (g) | 105 |
