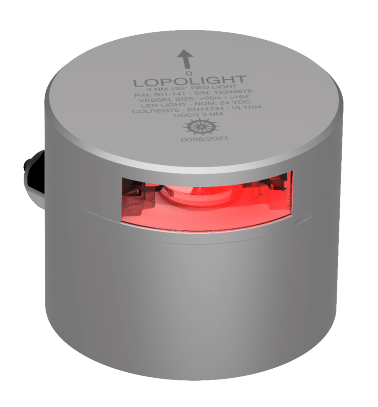

Horizontally mounted on alu base & PE base plate
Cable direction side or bottom
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Connection | Plug connector |
| Dimensions (mm) | Ø92,5mm x 74,5mm |
| Operating temperature | -25°C to 55°C |
| Feed wire gauge Min | 0.5mm2 AWG22 |
| Current draw (mA @ 12VDC) | 180 |
| Current draw (mA @ 24VDC) | 60 |
| Boat size (m) | Over 50M |
| Approved to | COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR |
| Luminous Intensity (cd) | >15 |
| Power supply type | dc. |
| Visibility (NM) | 3 |
| Power (W) | 2.5 |
| Operating voltage (V) | 10-32 |
| Material | Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
| Warranty (yrs) | 5 year limited warranty |
| Water resistance | IP68 |
| Weight (g) | 1000 |
