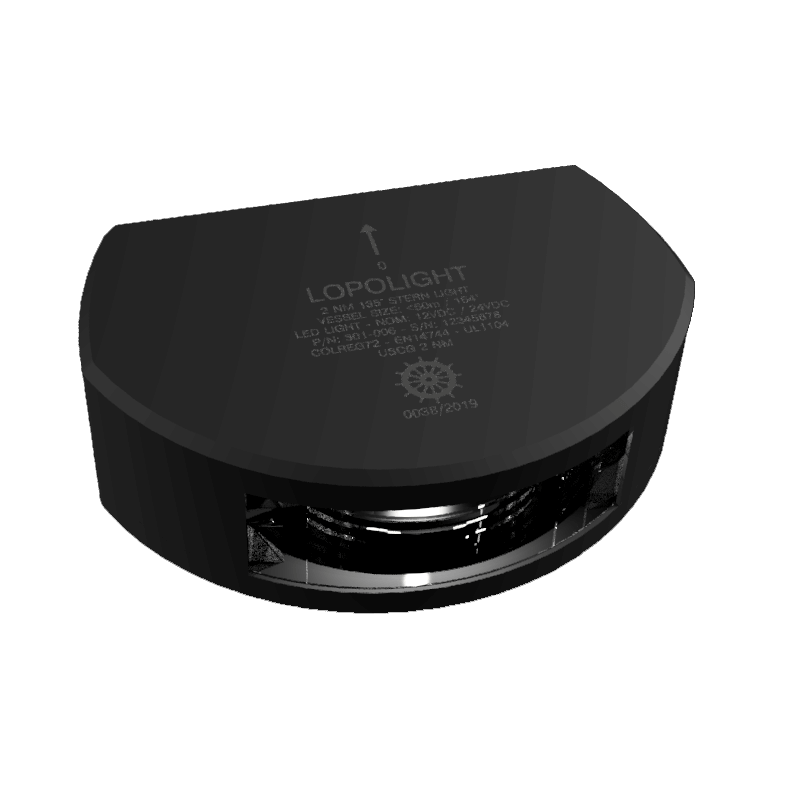

Lopolight 2NM 135° Stern Light – SUB Version, Black Anodised
[Extreme waterproofing – For vessels under 20m]
The Lopolight 2NM Stern Light – SUB Version is engineered for the most demanding marine conditions, providing true IP68+ submersion capability and extreme durability. Emitting a precise 135° white beam visible to 2 nautical miles, this horizontal-mount light is ideal for vessels under 20 metres that require maximum reliability.
The SUB model is vacuum-potted, with all internal electronics encapsulated in resin to ensure complete protection from water ingress, pressure, vibration, and long-term exposure. The housing is built from rugged black anodised aluminium, designed to resist corrosion and withstand heavy-duty use.
A 2.5-metre marine-grade cable provides flexibility for installation in exposed or complex routing environments.
Key Features:
- Suitable for vessels under 20 metres
- SUB version – vacuum-potted for IP68+ extreme waterproofing
- 135° white beam, visible to 2NM
- Horizontal mount – ideal for transom or deck installations
- Rugged black anodised aluminium housing
- Supplied with 2.5m marine-grade cable
- Low power draw – ~2 W at 10–32 V
- Fully compliant with COLREG72, EN14744, and USCG standards
-
Alternative versions available:
- Standard black or silver anodised models with 2.5m cable
- Standard black or silver anodised models with 6m cable
- Standard silver anodised model with 10m cable
Specifications
| Boat size (m) | 20-50M or 12-20M or Under 12M |
| Connection | 2.5m cable |
| Dimensions (mm) | 86,2 x 28 x 57,75 |
| Operating temperature | -25°C to 55°C |
| Feed wire gauge Min | 0.5mm2 AWG22 |
| Current draw (mA @ 12VDC) | 110 |
| Current draw (mA @ 24VDC) | 50 |
| Approved to | COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR |
| Luminous Intensity (cd) | >5.4 |
| Power supply type | dc. |
| Visibility (NM) | 2 |
| Power (W) | 1.3 |
| Operating voltage (V) | 10-32 |
| Material | Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
| Warranty (yrs) | 5 year limited warranty |
| Water resistance | IP68 |
| Weight (g) | 1000 |
