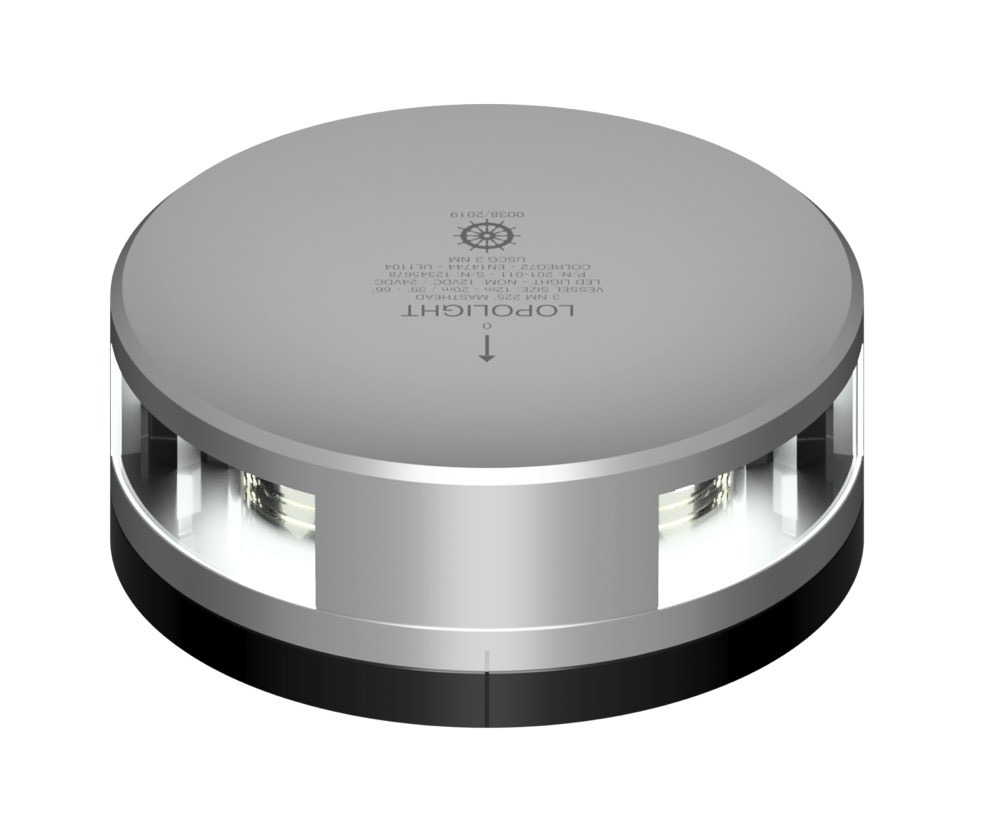

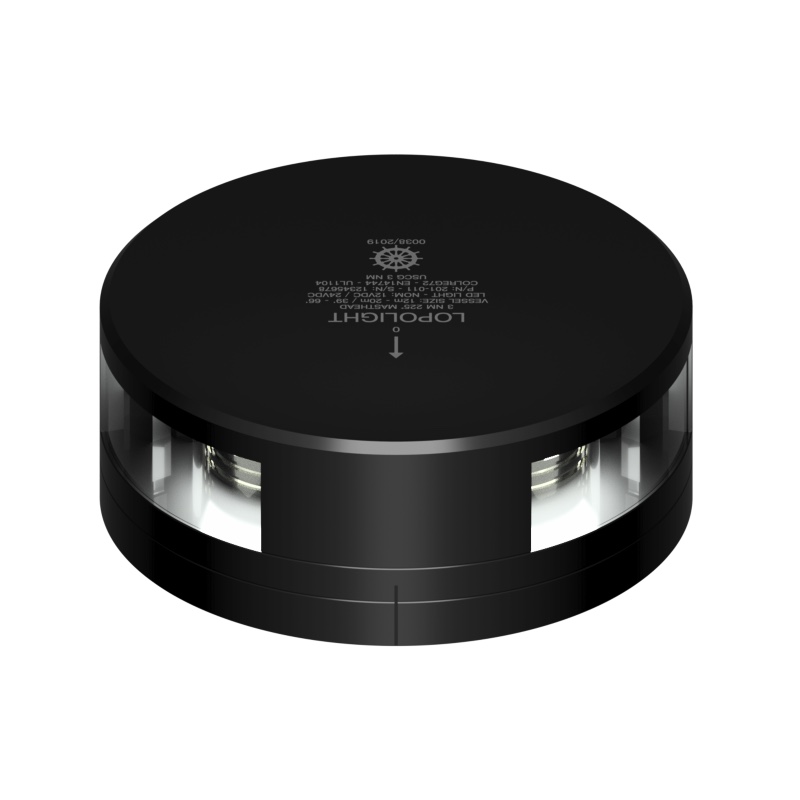

Lopolight 2NM 225° Masthead Light – Horizontal Mount, 0.7m Cable (Silver or Black Anodised)
[For vessels under 12m – LED navigation light]
The Lopolight 2NM Masthead Light in horizontal-mount configuration is designed for vessels under 12 metres, providing a 225° white beam visible to 2 nautical miles. This compact, efficient LED light delivers compliant forward visibility when under power, with a base designed for flat surface installation.
Available in Silver or Black anodised aluminium, the housing offers exceptional corrosion resistance and a sleek, low-profile design. Rated IP68, the epoxy-sealed electronics ensure long-term resistance to saltwater, vibration, and UV damage.
The 0.7-metre marine-grade cable provides a straightforward connection for standard installations.
Key Features:
- Suitable for vessels under 12 metres
- 225° white beam, visible to 2NM
- Horizontal mount – designed for flat surfaces on masts, arches, or superstructures
- Available in Silver or Black anodised aluminium housing
- IP68 sealed with epoxy-filled electronics for marine reliability
- Supplied with 0.7m marine-grade cable
- Low power draw – efficient LED output at 10–32 V
- Fully compliant with COLREG72, EN14744, and USCG standards
-
Alternative versions available:
- Vertical mount models in Silver or Black with 0.7m cable
- Vertical mount Black model with 15m cable
Specifications
| Colour* | Silver or Black |
| Material | Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane or Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
| Connection | 0.7m cable |
| Dimensions (mm) | Ø92,5mm x 46mm |
| Operating temperature | -25°C to 55°C |
| Feed wire gauge Min | 0.5mm2 AWG22 |
| Current draw (mA @ 12VDC) | 137 |
| Current draw (mA @ 24VDC) | 80 |
| Boat size (m) | Under 12M |
| Approved to | COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR |
| Power supply type | dc. |
| Visibility (NM) | 2 |
| Power (W) | 2 |
| Operating voltage (V) | 10-32 |
| Water resistance | IP68 |
| Weight (g) | 480 |
