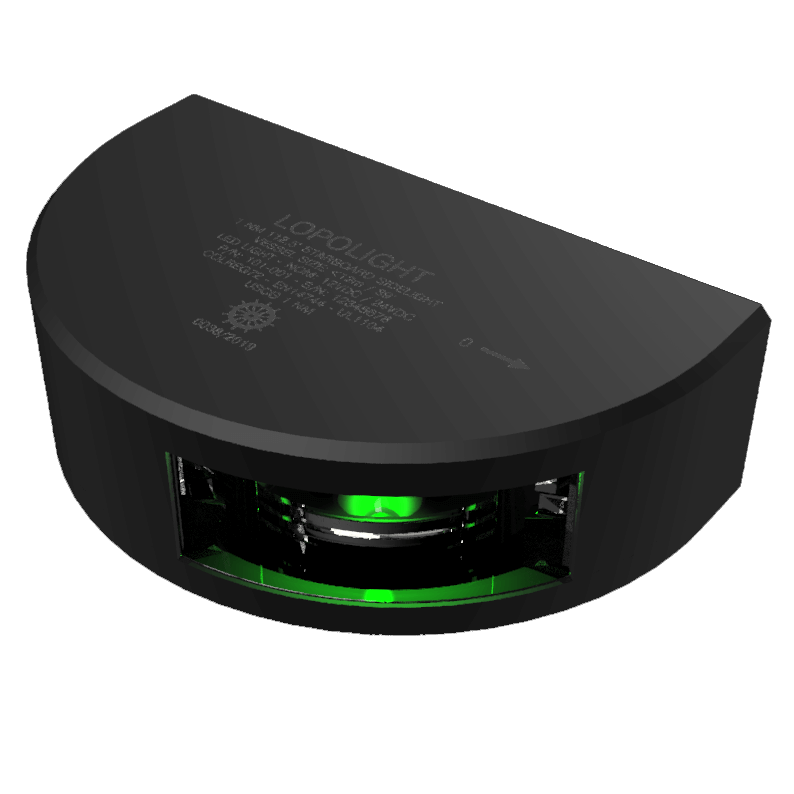

Lopolight 1NM 112.5° Starboard Sidelight – SUB Version, Black Anodised
[Extreme waterproofing – for vessels under 12m]
The Lopolight 1NM Starboard Sidelight (SUB) is engineered for the most demanding marine environments, offering true IP68+ submersion capability. Designed for vessels under 12 metres, it emits a precise 112.5° green light with a 1 nautical mile range, fully compliant with COLREG72.
Unlike standard sealed units, the SUB variant is vacuum-potted, meaning all internal electronics are encapsulated in resin to eliminate air pockets and ensure complete water ingress protection. This process makes the light submersible and pressure-resistant, ideal for high-spray zones, washdowns, and even underwater exposure.
The compact housing is machined from black anodised aluminium, offering excellent corrosion resistance and a low-profile, modern aesthetic. Pre-fitted with a 6-metre marine-grade cable, it allows for flexible installation in exposed or mission-critical locations.
Key Features:
- SUB variant with IP68+ submersion rating
- Vacuum-potted electronics for total waterproofing and vibration resistance
- Emits 112.5° green light, visible to 1NM
- Black anodised aluminium housing – corrosion-resistant and low-profile
- Supplied with 6m marine-grade cable
- Ultra-low power draw – ~1 W at 10–32 V
- Certified to COLREG72, EN14744, USCG, and additional high-durability testing
- Ideal for exposed deck edges, RIBs, commercial craft, and military use
Specifications
| Connection | 2.5m cable |
| Dimensions (mm) | 92,5 x 28 x 49,7 |
| Operating temperature | -25°C to 55°C |
| Feed wire gauge Min | 0.5mm2 AWG22 |
| Current draw (mA @ 12VDC) | 66 |
| Current draw (mA @ 24VDC) | 34 |
| Boat size (m) | Under 12M |
| Approved to | COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR |
| Luminous Intensity (cd) | >1.2 |
| Power supply type | dc. |
| Visibility (NM) | 1 |
| Power (W) | 1.1 |
| Operating voltage (V) | 10-32 |
| Material | Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
| Water resistance | IP68 |
| Weight (g) | 400 |
