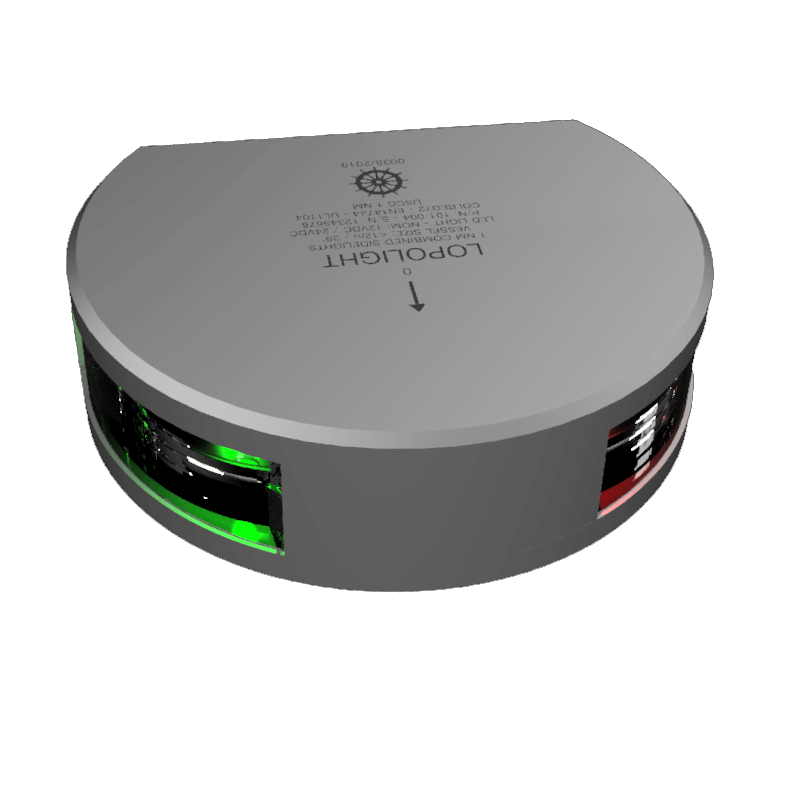

Lopolight 1NM Combined Sidelights – Vertical Mount, 2.5m Cable (Silver or Black Anodised)
[Port & Starboard – For vessels under 12m]
The Lopolight 1NM Combined Sidelights – Vertical Mount provide a compact, fully compliant navigation lighting solution for vessels under 12 metres. Integrating both port (red) and starboard (green) beams into a single vertically mounted fixture, it’s ideal for bow pulpits or narrow forward structures where space is limited.
Constructed from anodised aluminium and available in Silver or Black finishes, this fixture emits two sharp 112.5° light sectors, visible to 1 nautical mile, in accordance with COLREG72 and other international standards. The rugged, low-profile housing is IP68-rated and epoxy-sealed to protect against water ingress, vibration, and UV degradation.
A 2.5 metre marine-grade cable is pre-installed for easy connection during fit-out or retrofitting.
Key Features:
- Suitable for vessels under 12 metres
- Combined port and starboard sidelights (112.5° per side, visible to 1NM)
- Vertical mount – ideal for bow pulpits and narrow spaces

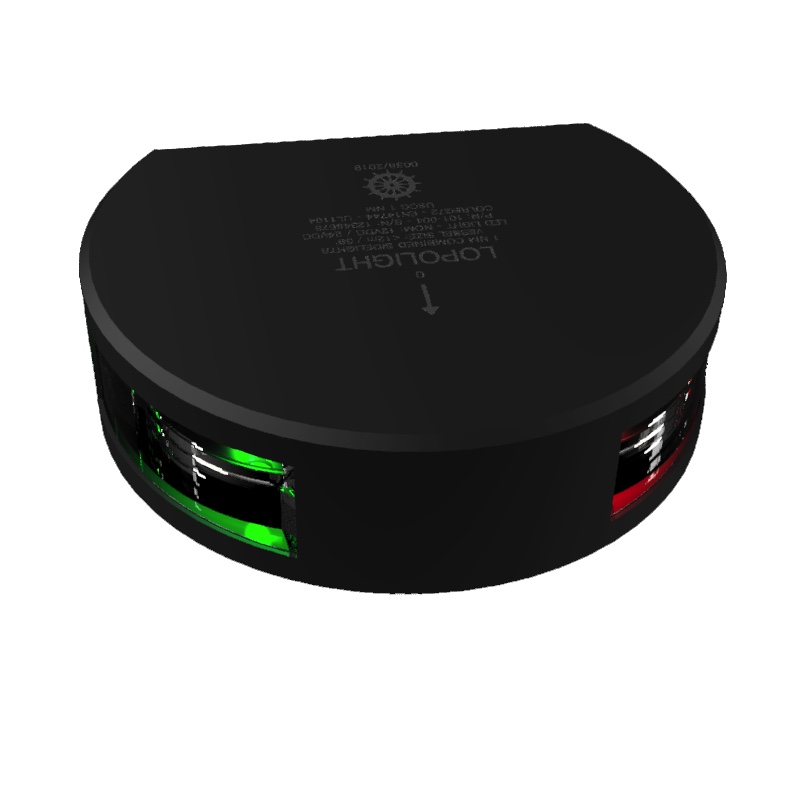

- Available in Silver or Black anodised aluminium
- IP68 sealed with epoxy for marine-grade durability
- Supplied with 2.5m marine-grade cable
- Low power draw – ~2 W total at 10–32 V
- Fully compliant with COLREG72, EN14744, and USCG standards
- Alternative version available in Black SUB specification with 6m cable for extreme environments
- Installation guide
Specifications
| Colour* | Black or Silver |
| Connection | 2.5m cable |
| Dimensions (mm) | 74,55 x 28 x 73,16 |
| Operating temperature | -25°C to 55°C |
| Feed wire gauge Min | 0.5mm2 AWG22 |
| Current draw (mA @ 12VDC) | 87 |
| Current draw (mA @ 24VDC) | 48 |
| Boat size (m) | Under 12M |
| Approved to | COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR |
| Luminous Intensity (cd) | >1.2 |
| Power supply type | dc. |
| Visibility (NM) | 1 |
| Power (W) | 1.4 |
| Operating voltage (V) | 10-32 |
| Material | Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
| Water resistance | IP68 |
| Weight (g) | 490 |
