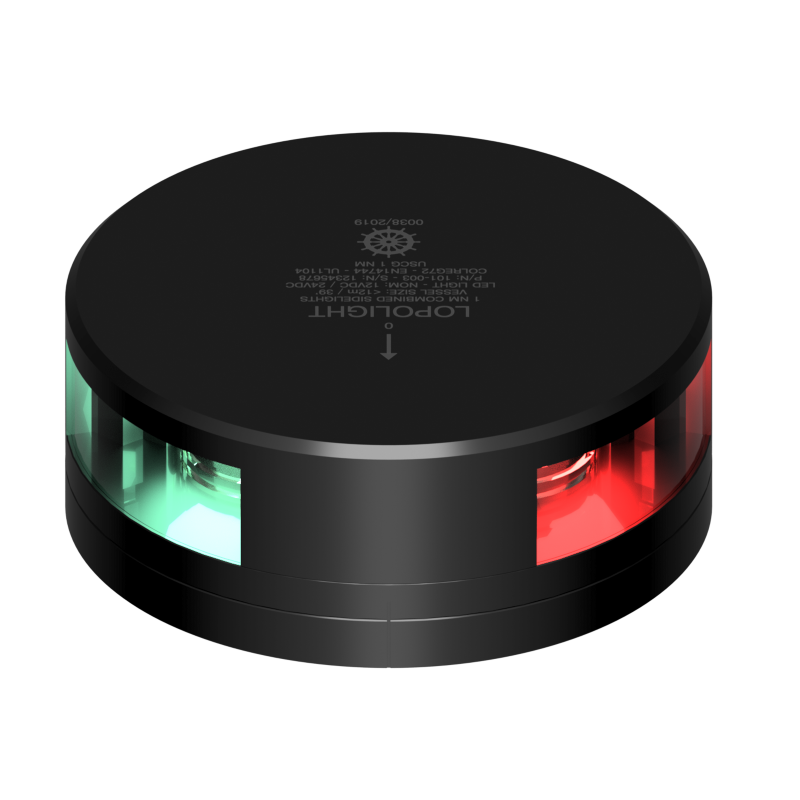

Lopolight 1NM Combined Sidelights w/2.5m Cable (Silver or Black Anodised)
[Port & Starboard – For vessels under 12m]
The Lopolight 1NM Combined Sidelights offer a compact and efficient LED navigation lighting solution for vessels under 12 metres. Designed to combine port (red) and starboard (green) sidelights into a single fixture, this unit is ideal for small yachts, RIBs, and powerboats where space is at a premium.
Precision-engineered from anodised aluminium, the light is available in both Silver and Black finishes to suit a range of vessel styles. It mounts horizontally on a flat base and emits two precise 112.5° sectors, each visible to 1 nautical mile, in full compliance with COLREG72.
Internally, the electronics are sealed and epoxy bonded to provide a robust IP68-rated barrier against water ingress, vibration, and UV exposure. A 2.5 metre marine-grade cable is pre-installed to streamline installation.
Key Features:
- Suitable for vessels under 12 metres
- Combined port and starboard sidelights (112.5° per side, visible to 1NM)
- Flat-base horizontal mount – ideal for compact spaces
- Available in Silver or Black anodised aluminium housing
- IP68 sealed with epoxy bonding for marine durability
- Supplied with 2.5m marine-grade cable
- Low power draw – ~2 W total at 10–32 V
- Fully compliant with COLREG72, EN14744, and USCG standards
Specifications
| Colour* | Black or Silver |
| Material | Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane or Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
| Connection | 2.5m cable |
| Dimensions (mm) | Ø92,5mm x 46mm |
| Operating temperature | -25°C to 55°C |
| Feed wire gauge Min | 0.5mm2 AWG22 |
| Current draw (mA @ 12VDC) | 87 |
| Current draw (mA @ 24VDC) | 48 |
| Boat size (m) | Under 12M |
| Approved to | COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR |
| Luminous Intensity (cd) | >1.2 |
| Power supply type | dc. |
| Visibility (NM) | 1 |
| Power (W) | 1.4 |
| Operating voltage (V) | 10-32 |
| Water resistance | IP68 |
| Weight (g) | 550 |
