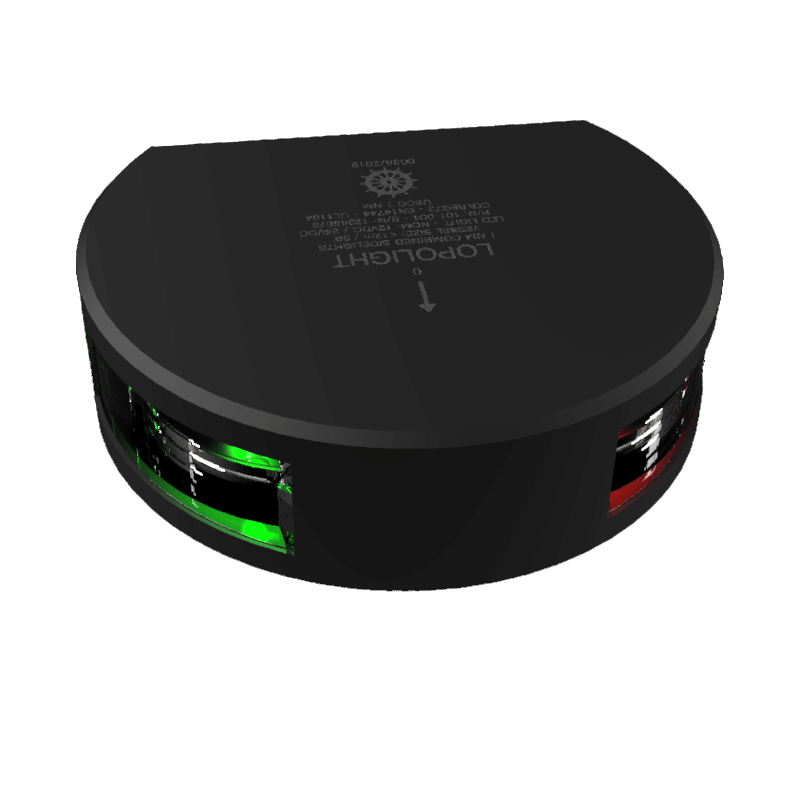

Lopolight 1NM Combined Sidelight – SUB, Vertical Mount, 6m Cable (Black Anodised)
[Port & Starboard – Extreme waterproofing for vessels under 12m]
The Lopolight 1NM Combined Sidelight – SUB Version is built for demanding marine environments where standard sealing isn’t enough. Designed for vessels under 12 metres, this vertically mounted fixture combines both port (red) and starboard (green) sidelights into a single compact unit, with each sector delivering 112.5° of light visible to 1 nautical mile — in full compliance with COLREG72.
What sets the SUB version apart is its IP68+ rating and vacuum-potted construction. The internal electronics are fully encapsulated in resin under vacuum, making the unit truly submersible and highly resistant to shock, vibration, and long-term moisture exposure. This makes it ideal for exposed locations, heavy-duty workboats, and military or offshore craft where reliability is critical.
The housing is machined from black anodised aluminium and supplied with a 6-metre marine-grade cable to support flexible routing in challenging installations.
Key Features:
- Suitable for vessels under 12 metres
- Combined port and starboard sidelights (112.5° per side, visible to 1NM)
- SUB version with vacuum-potted electronics and IP68+ rating
- True submersion resistance and extreme mechanical durability
- Vertical mount – ideal for pulpit or hull applications
- Rugged black anodised aluminium housing
- Supplied with 6m marine-grade cable
- Low power consumption – ~2 W total at 10–32 V
- Fully compliant with COLREG72, EN14744, USCG, and extended SUB-grade testing
Spécifications
| Connection | 6m cable |
| Dimensions (mm) | 74,55 x 28 x 73,16 |
| Operating temperature | -25°C to 55°C |
| Feed wire gauge Min | 0.5mm2 AWG22 |
| Current draw (mA @ 12VDC) | 87 |
| Current draw (mA @ 24VDC) | 48 |
| Boat size (m) | Under 12M |
| Approved to | COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR |
| Luminous Intensity (cd) | >1.2 |
| Power supply type | dc. |
| Visibility (NM) | 1 |
| Power (W) | 1.4 |
| Tension de fonctionnement | 10-32 |
| Matériau | Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
| Résistant à l'eau | IP68 |
| Poids (g) | 700 |
