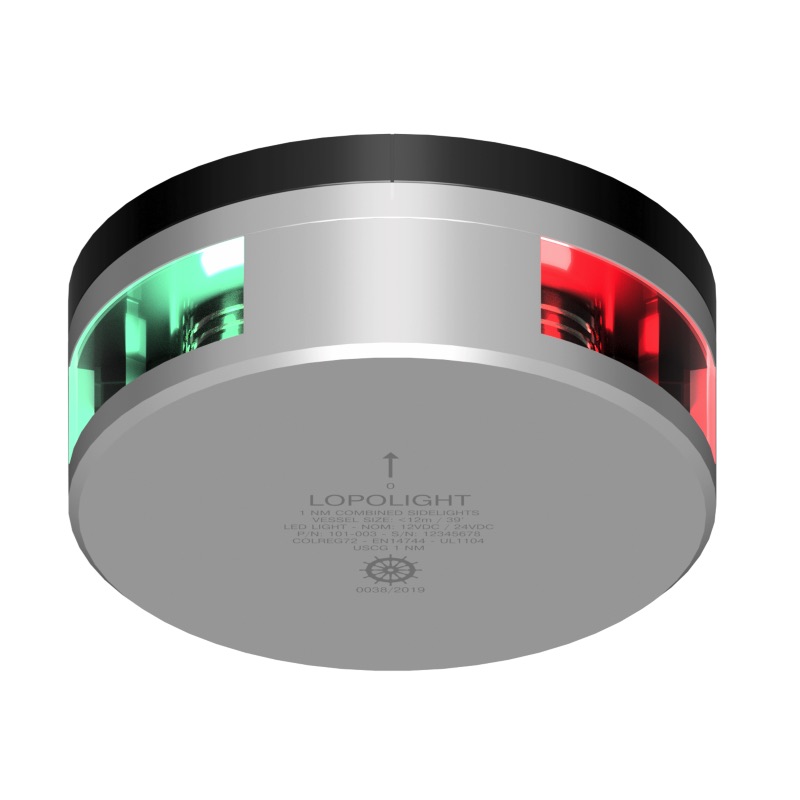

Lopolight 1NM Combined Sidelight – Horizontal Mount (Upside-Down), 2.5m Cable – Silver Anodised
[Port & Starboard – For vessels under 12m]
The Lopolight 1NM Combined Sidelight – Upside-Down Mount is designed specifically for installations beneath horizontal surfaces, such as under pulpits, toerails, or deck overhangs. Combining port (red) and starboard (green) sectors into a single compact unit, it provides a space-saving and compliant navigation solution for vessels under 12 metres.
This model is precision-machined from silver anodised aluminium and features a reversed flat-base design, optimised for downward-facing mounting. It emits two sharp 112.5° beams, visible to 1 nautical mile, and fully compliant with COLREG72 requirements for navigation lights.
The internal electronics are epoxy-sealed and rated IP68, protecting against water ingress, vibration, and UV degradation. A 2.5 metre marine-grade cable is pre-fitted to simplify installation.
Key Features:
- Suitable for vessels under 12 metres
- Combined port and starboard sidelights (112.5° per side, visible to 1NM)
- Reversed horizontal mount for installations beneath structures
- Durable silver anodised aluminium housing
- IP68 sealed with epoxy bonding for harsh marine environments
- Supplied with 2.5m marine-grade cable
- Low power draw – ~2 W total at 10–32 V
- Fully compliant with COLREG72, EN14744, and USCG standards
Spécifications
| Connection | 2.5m cable |
| Dimensions (mm) | Ø92,5mm x 46mm |
| Operating temperature | -25°C to 55°C |
| Feed wire gauge Min | 0.5mm2 AWG22 |
| Current draw (mA @ 12VDC) | 87 |
| Current draw (mA @ 24VDC) | 48 |
| Boat size (m) | Under 12M |
| Approved to | COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR |
| Luminous Intensity (cd) | >1.2 |
| Power supply type | dc. |
| Visibility (NM) | 1 |
| Power (W) | 1.4 |
| Tension de fonctionnement | 10-32 |
| Matériau | Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
| Résistant à l'eau | IP68 |
| Poids (g) | 650 |
