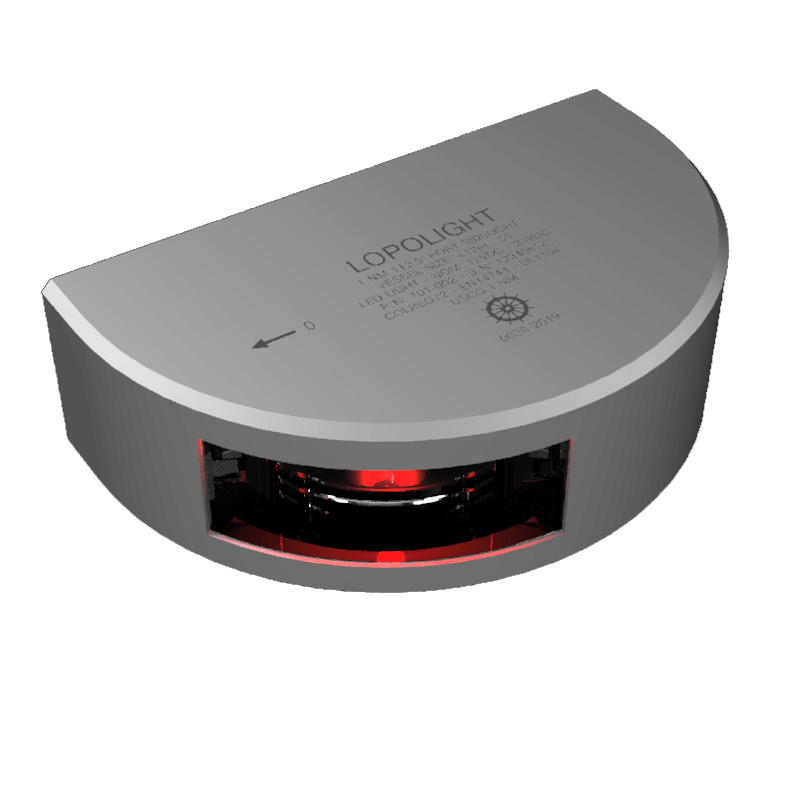

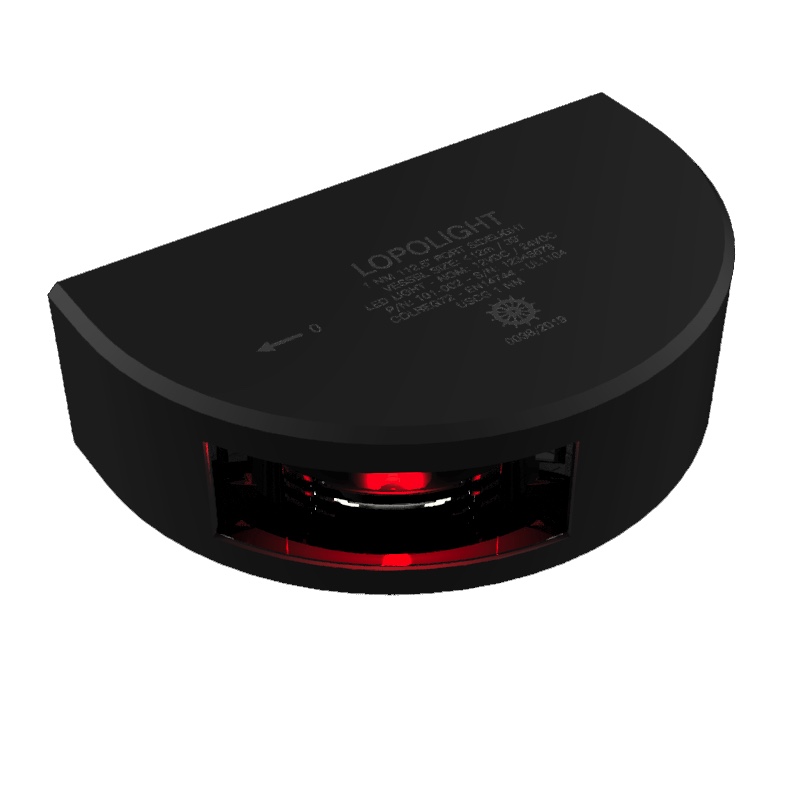

Lopolight 1NM 112.5° Port Sidelight – 2.5m Cable (Silver or Black Anodised)
[For vessels under 12m – LED navigation light]
The Lopolight 1NM Port Sidelight is a compact and highly durable LED navigation light, specifically engineered for vessels under 12 metres. Emitting a crisp 112.5° red sector with visibility up to 1 nautical mile, it meets all COLREG72 requirements for portside lighting on small yachts and commercial craft.
Precision-machined from anodised aluminium, this light is available in a choice of Silver or Black finish, offering both durability and a clean, modern look. The housing is IP68-rated and sealed with epoxy for long-lasting resistance to saltwater, UV, and vibration.
Fitted with a 2.5 metre marine-grade cable, the light is easy to install and well-suited for exposed deck or hull locations. Its vertical-mount form factor is ideal for tight spaces around the bow.
Key Features:
- Suitable for vessels under 12 metres
- LED sidelight with 112.5° red output, visible to 1NM
- IP68 sealed for dependable marine durability
- Choice of Silver or Black anodised aluminium housing
- Low power consumption – draws just ~1 W at 10–32 V
- Includes 2.5m cable for straightforward installation
- Fully compliant with COLREG72, EN14744, and USCG standards
- Weight: Approx. 0.39 kg
- Alternatives available with 6m cable connection and SUB (extreme waterproofing) versions
- Installation guide
Specifications
| Colour* | Silver or Black |
| Connection | 2.5m cable |
| Dimensions (mm) | 92,5 x 28 x 49,7 |
| Operating temperature | -25°C to 55°C |
| Feed wire gauge Min | 0.5mm2 AWG22 |
| Current draw (mA @ 12VDC) | 60 |
| Current draw (mA @ 24VDC) | 32 |
| Boat size (m) | Under 12M |
| Approved to | COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR |
| Luminous Intensity (cd) | >1.2 |
| Power supply type | dc. |
| Visibility (NM) | 1 |
| Power (W) | 1.1 |
| Operating voltage (V) | 10-32 |
| Material | Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
| Water resistance | IP68 |
| Weight (g) | 390 |
