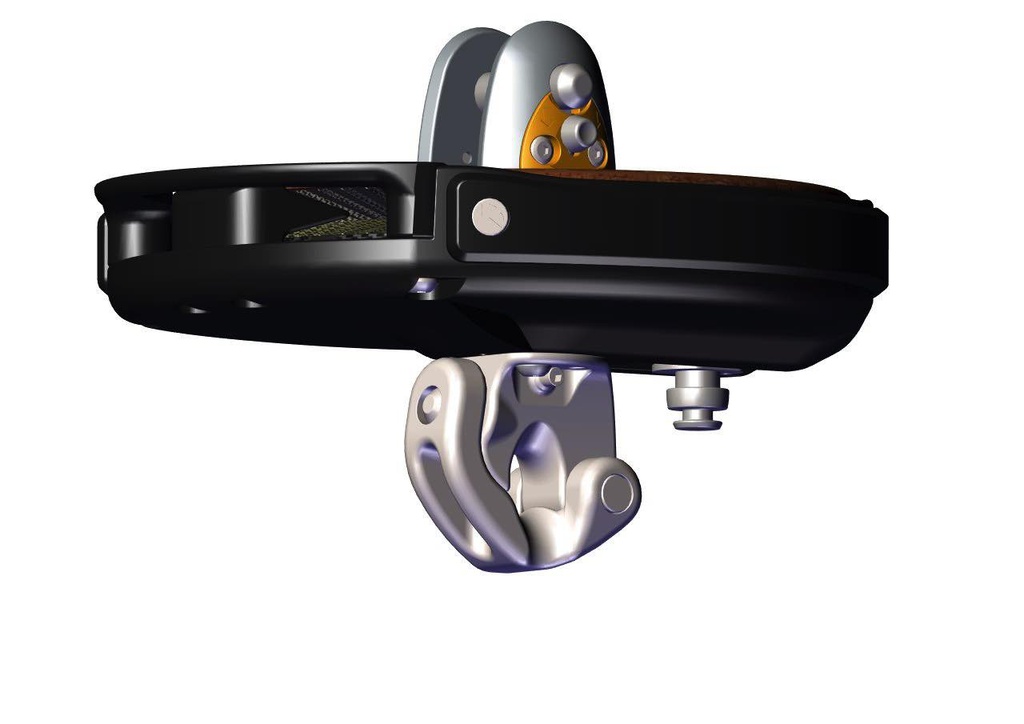

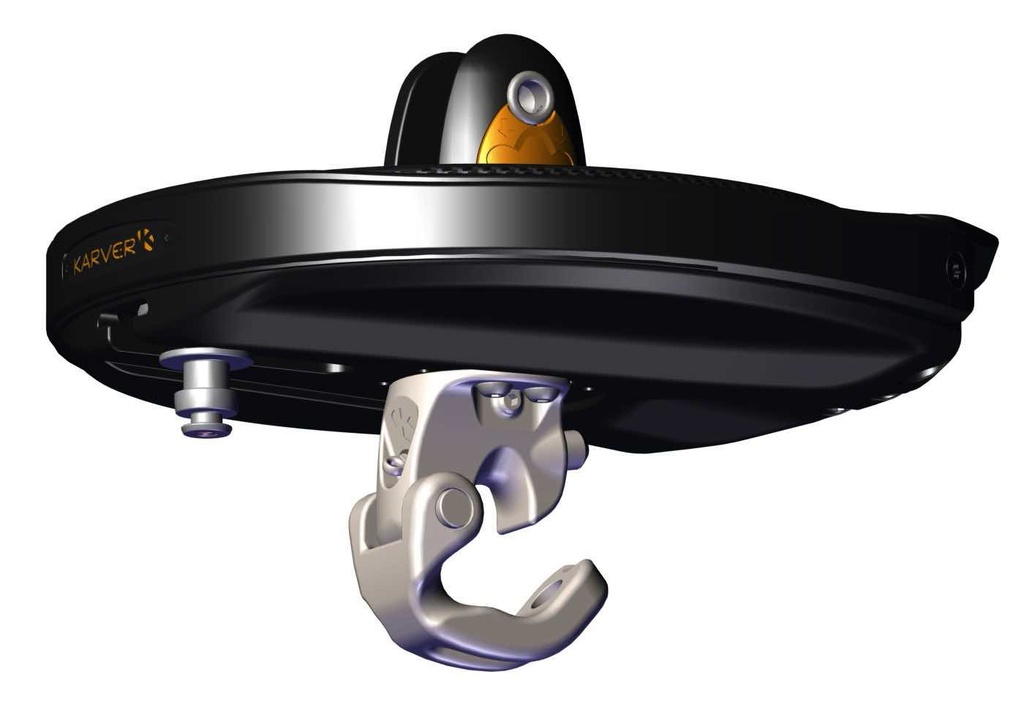

Karver K SNAP KF4.5–6.0: Dual-Purpose Snap Shackle Retrofit for KF4.5 and KF6.0 V3 Furlers

The Karver K SNAP KF4.5–6.0 is a retrofit snap shackle designed to upgrade existing Karver KF4.5 or KF6.0 V3 furlers, replacing either a 3:1 friction sheave or lashing eye with a flexible, dual-purpose fitting. This is the same K Snap installed on the Standard versions of both furlers and is now available separately for retrofit applications.

Two Functions – One Smart Design

The K Snap combines two rigging options into a single robust fitting:

• Standard Snap Shackle Mode – Securely attaches the furler to a fixed deck point or chainplate.
• 2:1 Purchase Mode – Allows a tack line to pass through the integrated sheave for a 2:1 mechanical advantage, ideal for improving sail tension and control.

This added versatility is particularly useful for larger boats where line loads are high and precise control over sail shape is critical.

Installation Guidance

Installing the K Snap KF4.5–6.0 requires disassembling the furler drum body to remove the existing attachment fitting. While not a simple plug-and-play swap, the installation process is clear and straightforward, with a video tutorial available for guidance:

👉 Watch the installation tutorial on YouTube

Technical Specifications

• Safe Working Load (SWL): 6000 kg
• Material: High-strength stainless steel with integrated sheave
• Compatibility: Fits both Karver KF4.5 and KF6.0 V3 furlers (Standard, Racing, Classic, Structural)

Ideal For

• Upgrading older KF4.5 or KF6.0 furlers with lash or friction sheave connections
• Larger yachts requiring flexible sail attachment and improved tack line control
• Performance cruisers or offshore racers seeking a clean, functional solution

The Karver K SNAP KF4.5–6.0 delivers a professional, high-load attachment option for larger furling systems, combining strength and functionality in a sleek and adaptable format.
