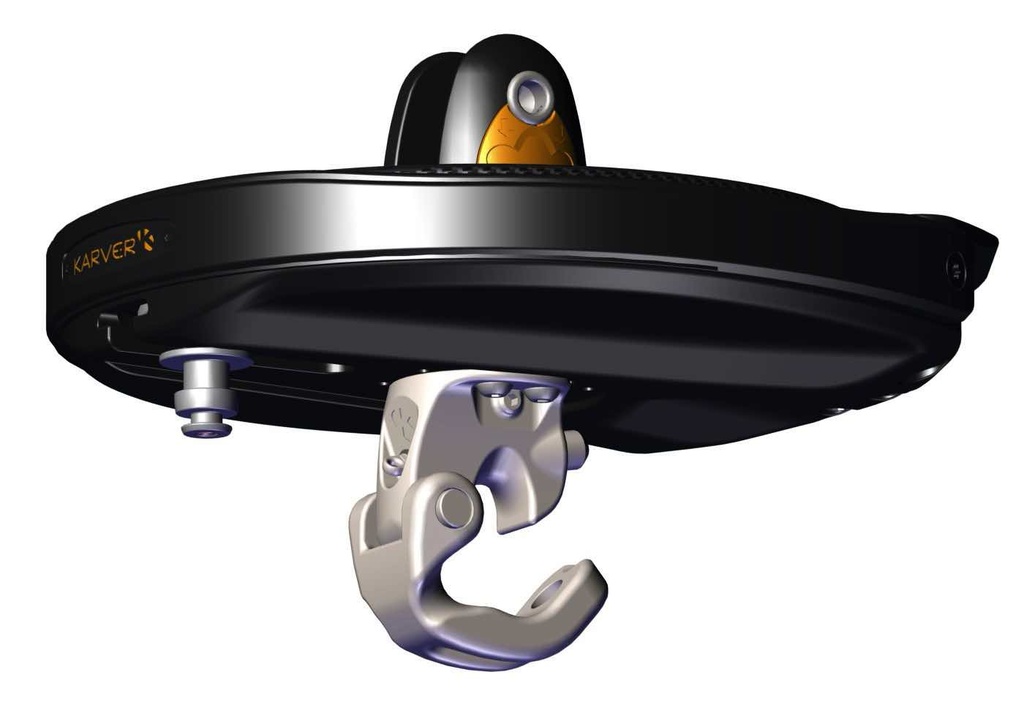

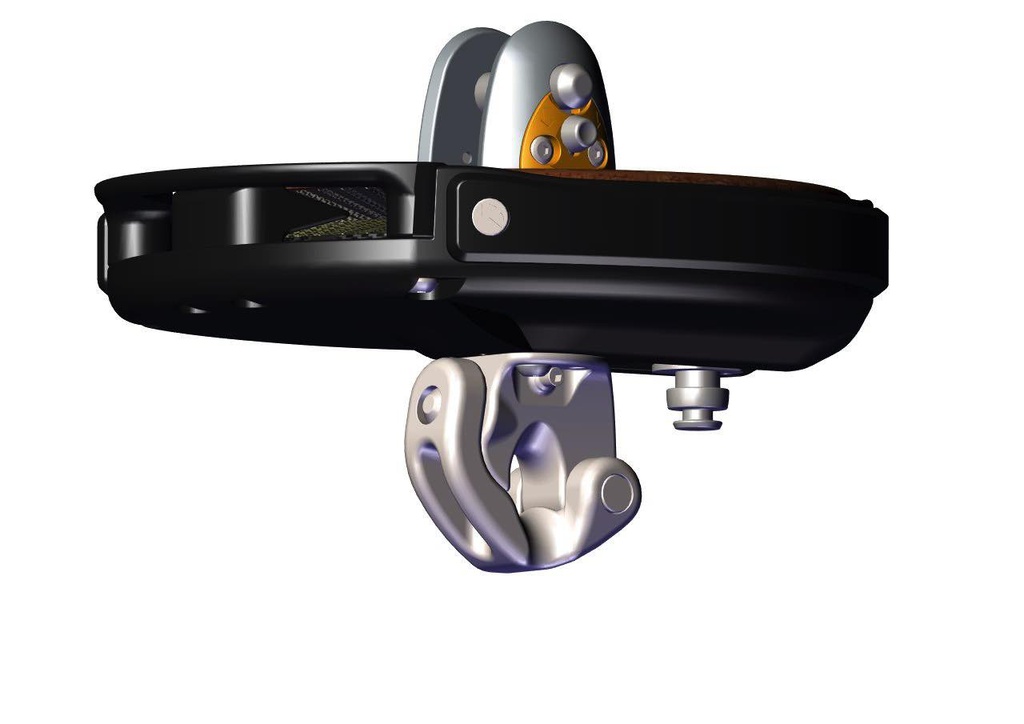

Karver K SNAP KF3.0: Dual-Purpose Snap Shackle Retrofit for KF3.0 V3 Furlers

The Karver K SNAP KF3.0 is a retrofit accessory designed to enhance the functionality of your Karver KF3.0 V3 furler, replacing either the standard 3:1 friction sheave or lashing eye with a single, versatile fitting. This is the same K Snap installed on the KF3.0 Standard Version, now available as a standalone upgrade for existing systems.

Two Modes – One Compact Solution

The K Snap offers dual functionality in one integrated unit:

• Standard Snap Shackle Mode – Enables quick, secure attachment to a fixed chainplate or pad eye.
• 2:1 Purchase Mode – Route your tack line through the built-in sheave for a 2:1 mechanical advantage, allowing easier sail tensioning and more precise control.

This makes the K Snap ideal for sailors who want the flexibility to adapt their furling setup based on wind conditions or performance goals.

Installation Guidance

Retrofitting the K Snap KF3.0 requires partial disassembly of the furler drum to remove the original lashing point or friction sheave. It is not a tool-free swap, but the process is straightforward, and Karver provides a detailed video walkthrough:

👉 Watch the installation tutorial on YouTube

Technical Specifications

• Safe Working Load (SWL): 3000 kg
• Material: Stainless steel with integrated sheave
• Compatibility: All Karver KF3.0 V3 furlers (Standard, Racing, Classic, Structural)

Ideal For

• Retrofitting older KF3.0 furlers fitted with lash or friction sheave connections
• Sailors seeking greater control through a 2:1 tack line setup
• Performance-oriented cruisers and racers wanting a streamlined, adaptable connection

The Karver K SNAP KF3.0 is a robust and intelligent upgrade for any sailor looking to expand the functionality of their KF3.0 furling system—balancing convenience, strength, and control in one compact component.
