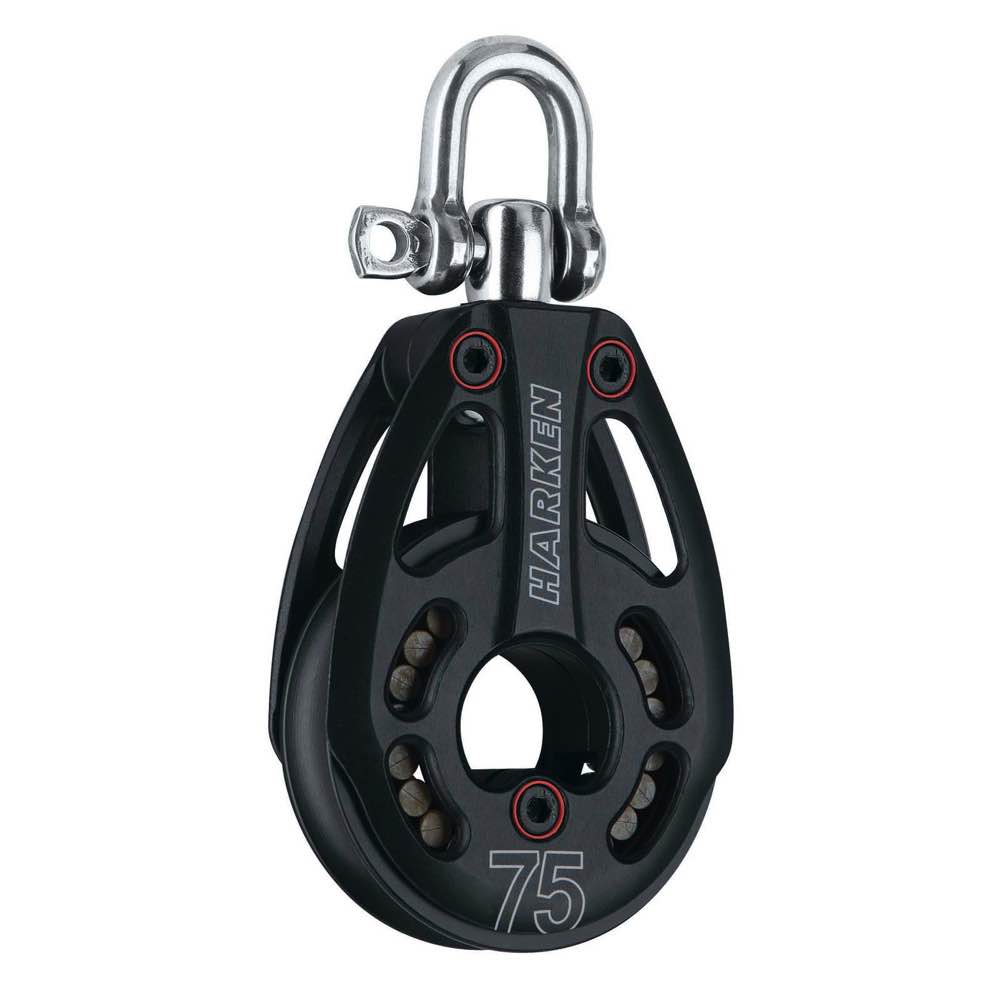

Harken 75mm Black Magic Air Low Load Block
Lightweight, high-performance block for less demanding applications
The Harken 75mm Black Magic Air Low Load Block delivers all the core performance features of the Black Magic range—Torlon® bearings, lightweight strength, and easy serviceability—in a lower load configuration. Designed for 14mm lines with a Safe Working Load (SWL) of 1361kg and a Breaking Load of 2722kg, it is ideal for spinnaker systems, mainsheet fine-tune lines, or lightly loaded halyard leads where peak forces are reduced, but efficiency and reliability remain critical.
Efficient Bearing System for Smooth Operation
A large 75mm sheave rides on Torlon® roller bearings, supported by a centre cage that keeps the rollers aligned and evenly spaced for low friction under load. Delrin® side-load ball bearings are fully captive, supporting lateral loads without risk of loss or misalignment.
Shackle Mounting with Customisable Movement
This model includes a shackle head, offering flexible attachment. A smart set screw system allows the shackle to be either locked in a fixed orientation or left free to swivel, depending on your rigging preferences or system requirements—ideal for avoiding line twist or optimising alignment under varying load angles.
Lightweight and Durable Construction
Despite its “low load” designation, this block features hardcoat anodised aluminium side plates that provide outstanding resistance to wear, corrosion, and UV damage. The block stays looking sharp and functioning smoothly in even the harshest sailing environments.
Easy Maintenance at Sea
Black Magic Air blocks are designed with sailor-friendly serviceability in mind. Unlike riveted alternatives, fasteners allow for quick disassembly using a single hex wrench, and all bearing components are securely retained for stress-free maintenance on board.
Specifications:
- Sheave Diameter: 75mm
- Maximum Line Diameter: 14mm
- Safe Working Load (SWL): 1361kg
- Breaking Load: 2722kg
- Configuration: Low Load Block with Shackle
Perfect for control lines or lower-load applications where low friction, adjustability, and easy maintenance are essential, the Harken 75mm Black Magic Air Low Load Block combines top-tier engineering with versatile rigging options.
Specifications
| Length (mm) | 129 |
| Recommended line - Max Ø (mm) | 14 |
| Sheave Ø (mm) | 75 |
| Pin Ø (mm) | 8 |
| SWL (kg) | 1361 |
| NBL (kg) | 2722 |
| Weight (g) | 335 |
