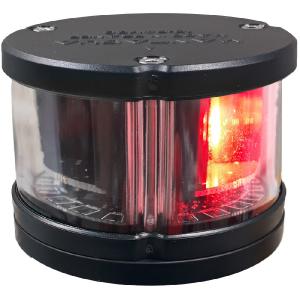

Mantagua NAVIPRO Compact 2 NM Port Light (Red 112.5°)
The Mantagua NAVIPRO Compact Range delivers professional-grade LED navigation lights in a sleek, low-profile design. Engineered for yachts, motorboats, and workboats up to 50 metres, these lights combine modern aesthetics with full COLREG compliance. The compact form factor makes them ideal where a discreet installation is required, while still ensuring long-range visibility and reliability.
The NAVIPRO Compact 2 NM Port Light provides a 112.5° red beam with a visibility range of 2 nautical miles, making it a fully compliant COLREG navigation light for the port (left) side of the vessel. Its low-profile housing offers a modern, unobtrusive fit, well-suited to contemporary yachts and professional craft where clean lines and efficient installation are important.
All NAVIPRO Compact lights are Wheelmark certified (MED 60427/A0) and CE approved, meeting the highest international standards for safety and performance. Constructed with IP67 waterproofing, UV-resistant housing, and robust LED technology, they deliver reliable operation, long service life, and very low power consumption. The NAVIPRO series is also tested to ensure zero interference with essential onboard systems such as VHF and AIS.
Key features:
- Part of the low-profile NAVIPRO Compact Range
- Red LED port sidelight, 112.5° coverage
- 2 NM visibility range (COLREG compliant)
- For yachts, motorboats, and workboats up to 50 m
- Wheelmark certified (MED 60427/A0) and CE approved
- Streamlined, low-profile design for modern installations
- IP67 watertight and UV-resistant housing
- LED technology: low power draw, long service life
- Tested for zero interference with VHF and AIS systems
Specifications
| Beam angle (degrees) | 112.5 |
| Width (mm) | 70 |
| Connection | 1m Cable |
| Boat size (m) | 12-20M |
| Luminous Intensity (cd) | >5.4 |
| Visibility (NM) | 2 |
| Power (W) | 1.08 |
| Operating voltage (V) | 9-30 |
| Height (mm) | 50 |
| Warranty (yrs) | 2 |
| Water resistance | IP67 |
| Weight (g) | 190 |
| Certification | WHEELMARK 60427/A0 MED |
