Specifications for Harken Small boat halyard swivel - 5mm
| Ø axe (mm) | 5 |
| Ø cable max (mm) | 5 |
| Charge de travail (kg) | 540 |
| Charge de rupture (kg) | 1620 |
| A (mm) | 144 |
| Poids (g) | 252 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.

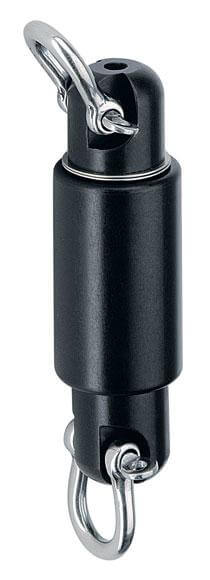

This optional hoistable ball bearing halyard swivel can be installed on your headstay so you can raise or lower the sail without removing the headstay. Swivels are independent of the headstay, allowing you to tension the luff separately from the mast rake. The 5mm swivel is for use with - Harken Underdeck Furling Sytem model 493 - Harken High-Load Furling Drum model 208 - Harken Continuous Line-Drive Furler model 1134
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Spécifications
| Ø axe (mm) | 5 |
| Ø cable max (mm) | 5 |
| Charge de travail (kg) | 540 |
| Charge de rupture (kg) | 1620 |
| A (mm) | 144 |
| Poids (g) | 252 |
